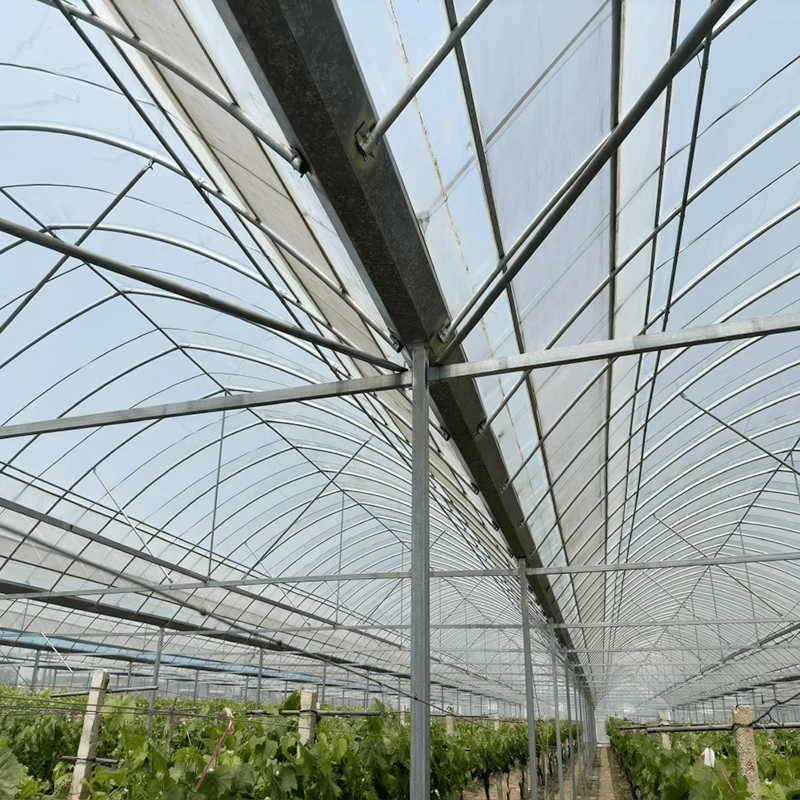

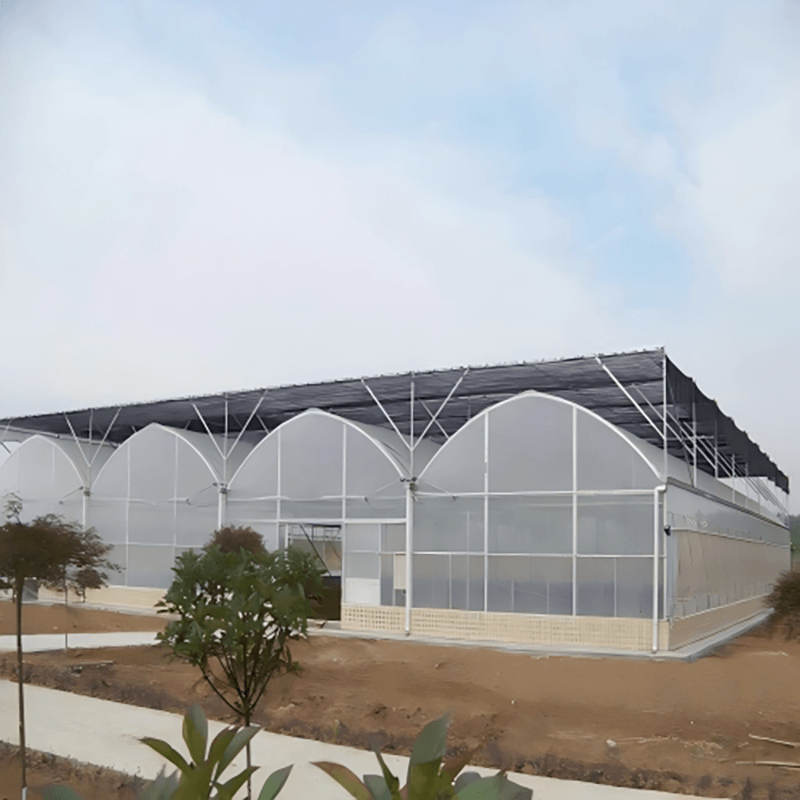

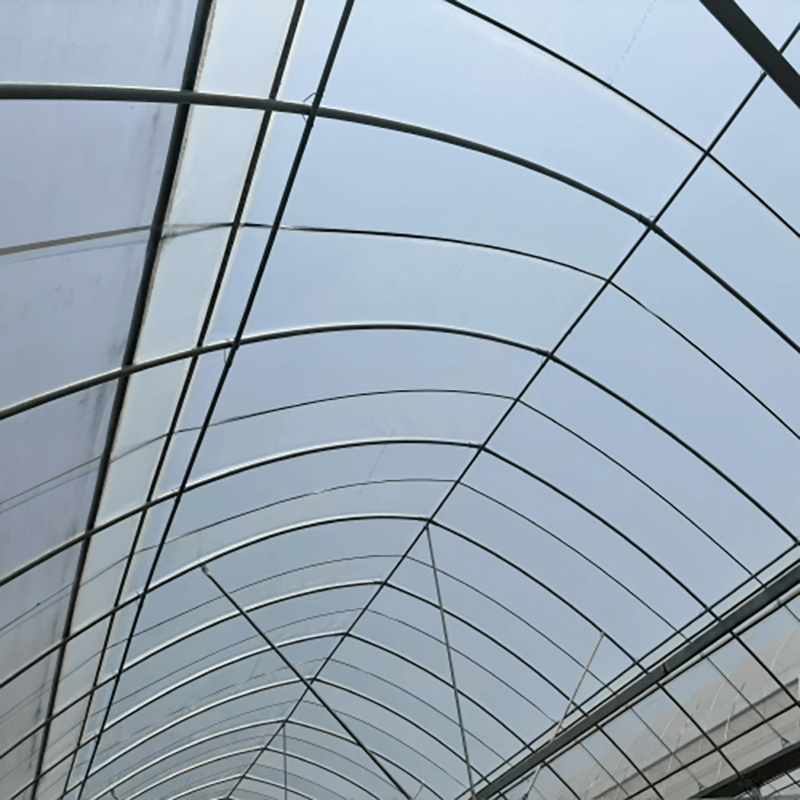

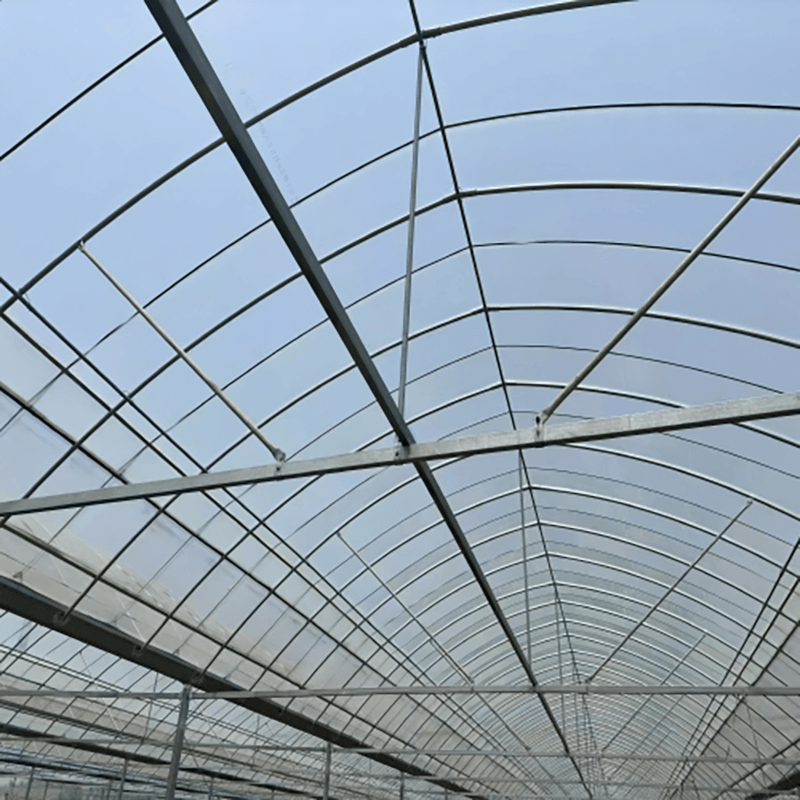

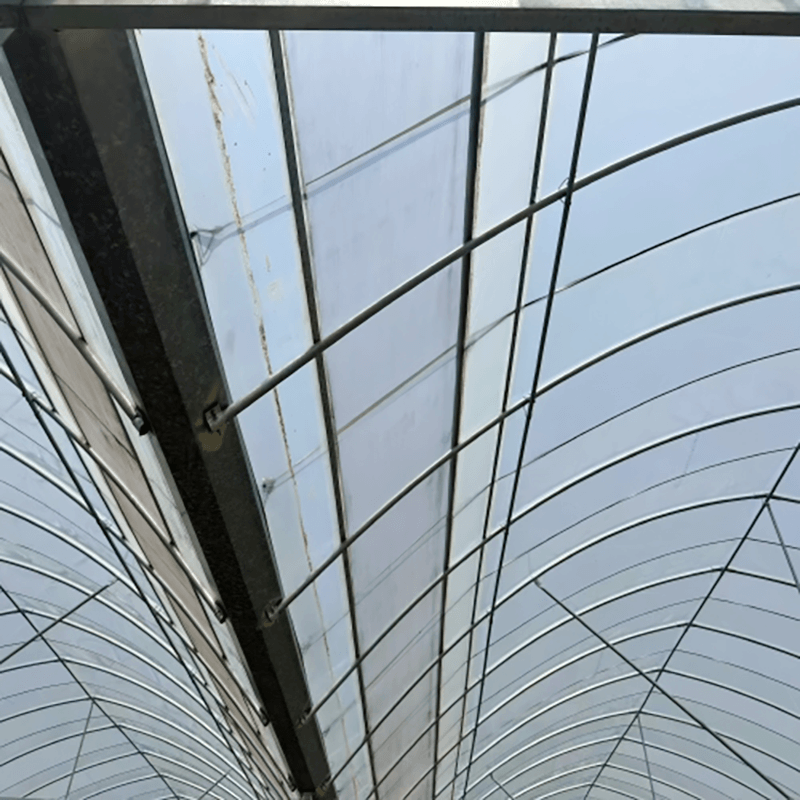

The multi-span film greenhouse for grape cultivation from Jinghao is a cost-effective, high-performance agricultural solution specifically engineered for commercial grape production. Constructed with a hot-dip galvanized steel frame and high-quality PE/PO/EVA film covering, it offers excellent light transmission, superior structural durability, and exceptional value for money. This greenhouse design optimizes vertical growing space, making it ideal for trellised grape cultivation. It supports a wide range of optional systems, including shading, cooling, ventilation, and irrigation, allowing growers to create the perfect growing environment for different grape varieties and achieve earlier harvests and higher yields.
High-Value Covering Solution: Uses premium PE/PO/EVA film with light transmittance exceeding 90%, ensuring optimal photosynthesis for grapevines. The film is UV-stabilized, anti-drip, and anti-fog, with a service life of 3-5 years, providing a highly cost-effective alternative to glass greenhouses.

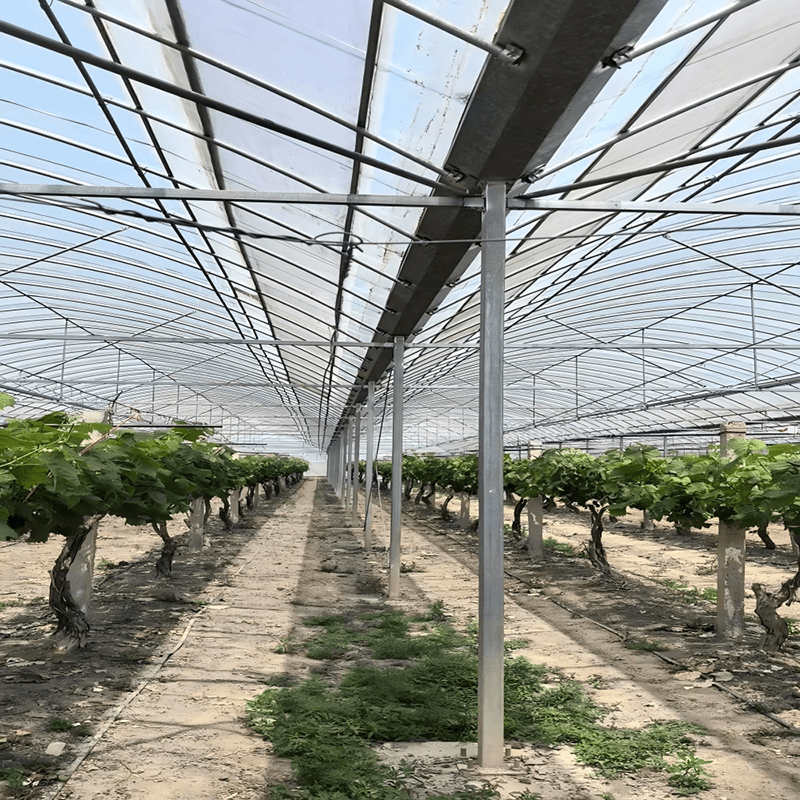

Grape-Specific Structural Design: Features optimized heights and spans that accommodate standard grape trellis systems, maximizing growing density and facilitating mechanized operations. The spacious interior allows for easy vine management, pruning, and harvesting.
Corrosion-Resistant Frame: The hot-dip galvanized steel frame provides excellent resistance to rust and corrosion, even in humid agricultural environments. It is engineered to withstand strong winds and heavy snow loads, ensuring long-term structural stability.
Superior Ventilation Performance: Equipped with dual-side ventilation systems operated by manual or electric roll-up machines, providing efficient natural ventilation. This helps regulate temperature and humidity, reducing the risk of fungal diseases common in grape cultivation.
Flexible System Configuration: Offers a wide range of optional systems, including external and internal shading, fan-and-pad cooling, drip irrigation, and fertigation systems. Growers can select the exact combination of systems to meet their specific needs and budget.
Brand Name | Jinghao |
Size | Large |
Types Of | Multi-Span Agricultural Greenhouses, Plastic Shed |
Surface Material | Film |
Place Of Origin | China |
Frame Material | Hot Galvanized Steel |
Covering Material | Po/PE/EVA Film |
Specification | multi span |
Span Width | 9.6m, 10.8m, 12m |
Height | 3-5m |
Light Transmittance Rate | More Than 90% |
Production Name | Multi-span plastic tunnel greenhouse |
Length | 60-200m, customize |
Span Width | 9.6m 10.8m 12m |
Roof Height | 3-6m, can customized |
Greenhouse Farme | Hot galvanized steel pipe, diameter is 25mm, 32mm, 40mm, 42mm, 50mm, 60mm |
Cover Film | PE/PO 0.12/0.15/0.2mm, customize |
Ventilation | Two sides ventilation by manual/electric roll up machine |
Wind Load | 80-130km/h |
Snow Load | 0.5KN/M2 |
Plants Hanging Load | 0.15KN/m2 |
Rain Drainage | 140mm3/h |
Option | Cooling fan, cooling pad, shade net, heater, lights, irrigation system |
While primarily designed for grape cultivation, this multi-span film greenhouse is also highly versatile and suitable for growing a wide range of other crops. It is ideal for cultivating berries, tomatoes, cucumbers, peppers, and other vegetables. Additionally, it can be used for seedling propagation, herb growing, and as a protective structure for nursery stock. Its affordability and flexibility make it the preferred choice for small to medium-sized farm operators and commercial agricultural enterprises looking to expand their production capacity.
Film Maintenance: Inspect the film covering regularly for tears or punctures. Repair small holes immediately using greenhouse repair tape. Clean the film annually with a soft brush and mild detergent to remove dirt and maintain light transmission. Replace the film every 3-5 years as it ages and loses its optical properties.
Frame Inspection: Check the steel frame annually for signs of corrosion. Touch up any damaged areas with zinc-rich paint. Tighten all bolts and connections, especially after strong winds or heavy snowfall.
Ventilation System Care: Lubricate the roll-up machine gears and chains quarterly to ensure smooth operation. Inspect the ventilation screens for tears and replace them if damaged to prevent pests from entering the greenhouse.
Irrigation System Maintenance: Flush the drip irrigation system monthly to remove sediment and prevent clogging. Check emitters regularly for proper operation and replace any clogged or damaged units.
Our premium UV-stabilized film has a service life of 3-5 years under normal operating conditions. We offer different film grades with varying lifespans to suit different budgets.
Yes, it is engineered to withstand wind speeds of 80-130km/h, depending on the specific model and configuration. Additional bracing can be added for areas with particularly high wind loads.
Yes, we can supply and install customized grape trellis systems that are perfectly integrated with the greenhouse structure, ensuring optimal growing conditions for your vines.
Yes, the modular design allows for easy retrofitting of additional systems such as shading, cooling, or heating at a later date as your operation expands.
