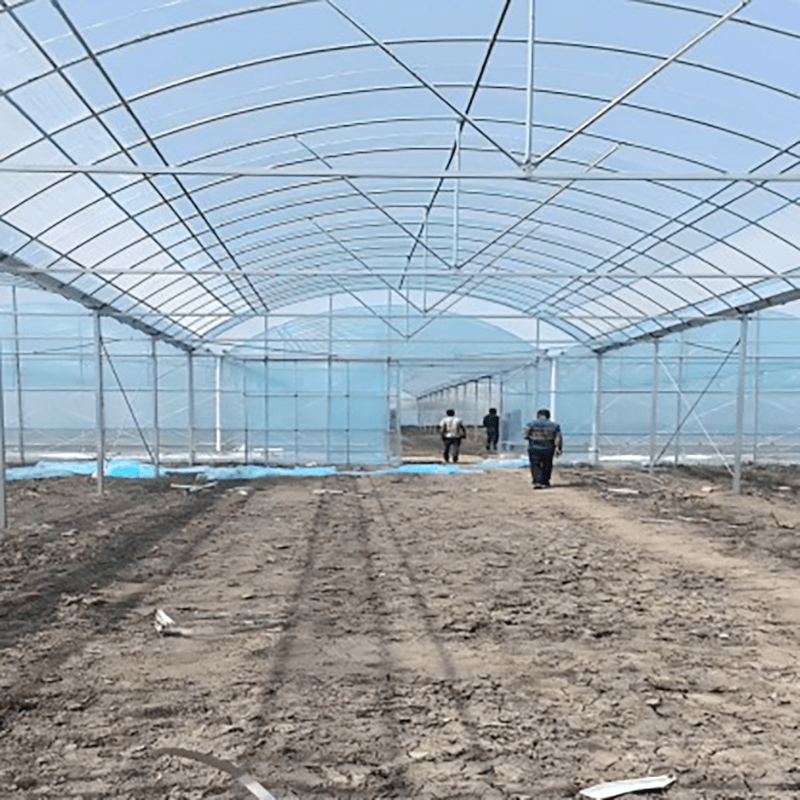

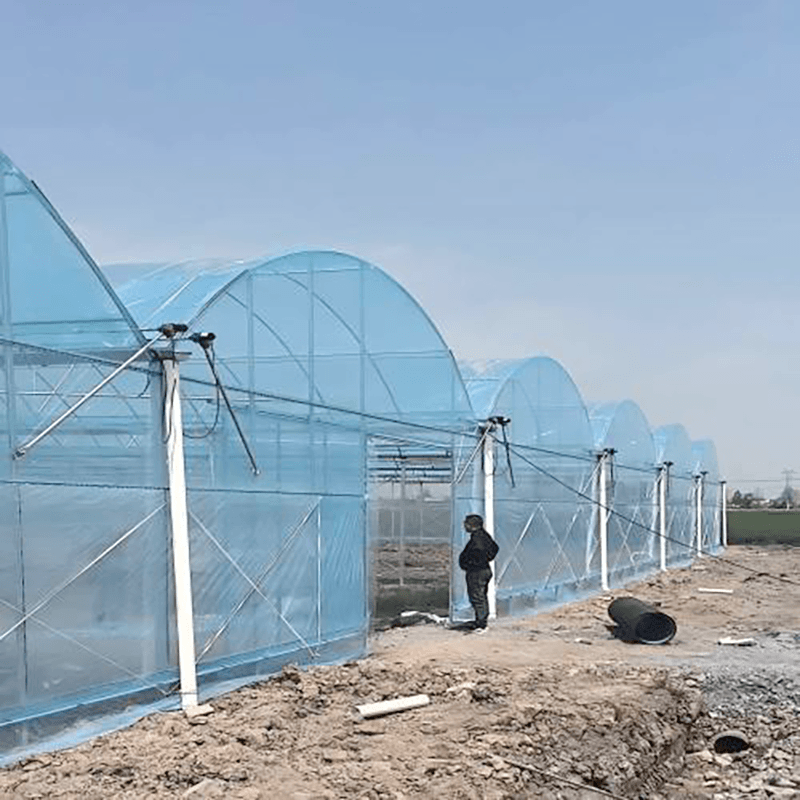

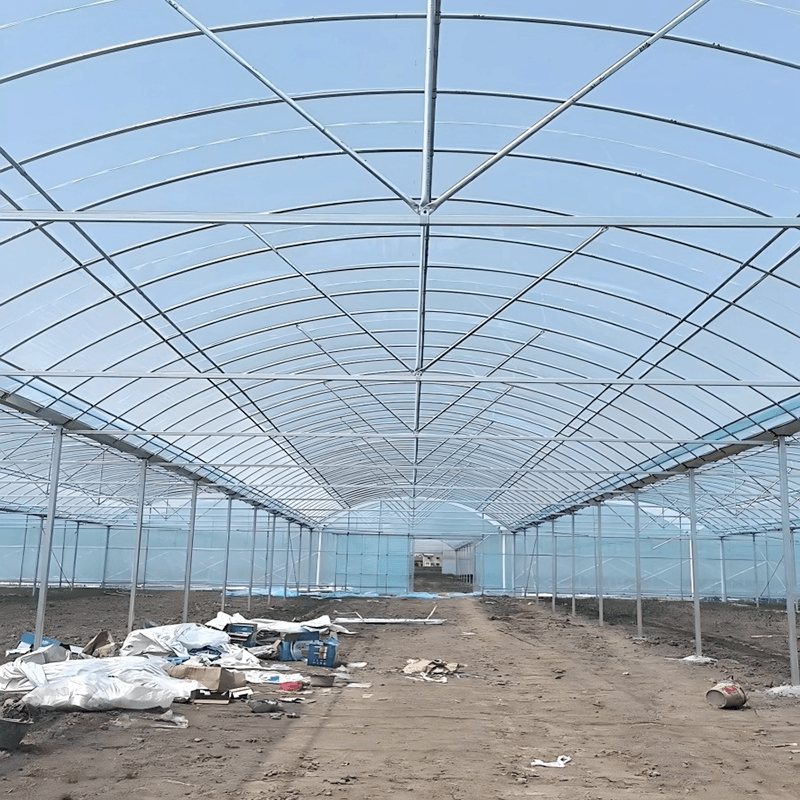

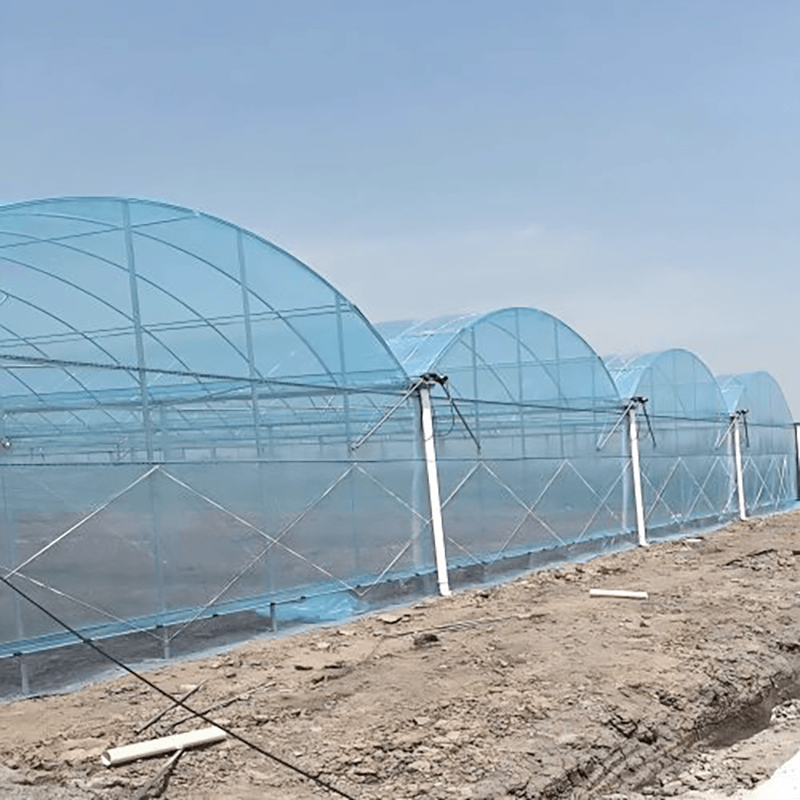

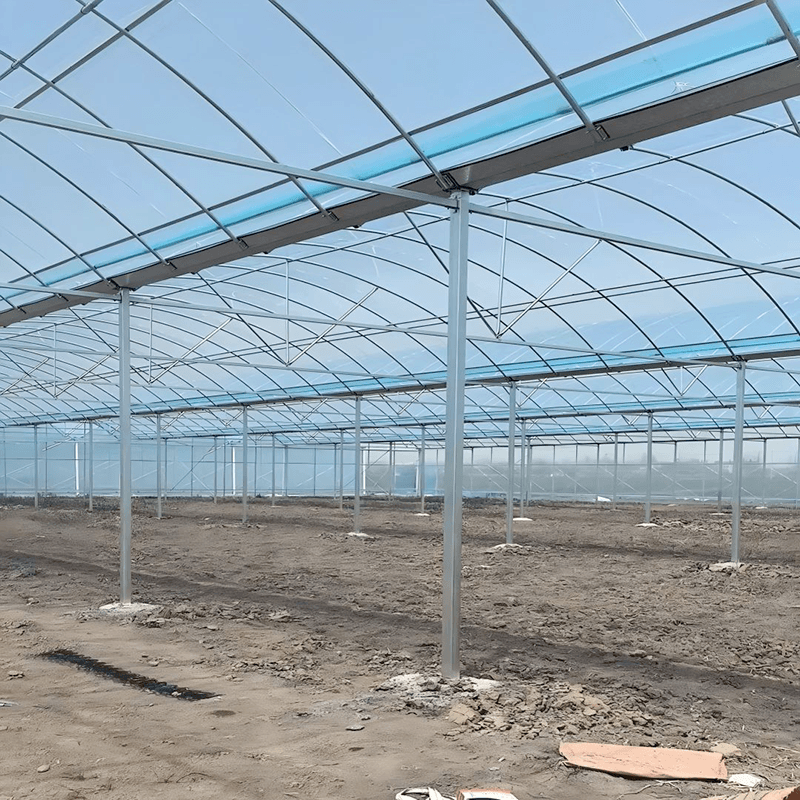

Manufactured by Jinghao, a leading agricultural engineering enterprise, this multi-span agricultural greenhouse integrates a robust hot-dip galvanized steel frame with premium UV-stabilized film covering, striking an optimal balance of durability, space efficiency, and cost-effectiveness. Its modular multi-span architecture supports seamless expansion, making it the go-to solution for agricultural enterprises, large-scale farms, and commercial nurseries aiming to boost production output while cutting operational expenses.
Built with hot-dip galvanized steel of at least 0.5mm thickness, the frame of this hot-dip galvanized steel frame greenhouse delivers outstanding anti-corrosion and rust-resistant performance, guaranteeing a service life exceeding 15 years. It is engineered to withstand wind speeds up to 25m/s (Beaufort Scale 10) and snow loads up to 0.35kN/m², ensuring stable operation even in harsh regional weather conditions.
The standard 3–5 span configuration (fully customizable) drastically improves land utilization compared to single-span alternatives. This UV-stabilized PE film greenhouse adopts 150-200 micron thick polyethylene film with over 90% light transmission and an anti-drip coating, ensuring uniform light distribution across the entire growing area and preventing water droplet damage to young plants.
Equipped with an optimized dual ventilation system of roof vents and side roll-up curtains, this commercial vegetable greenhouse enables precise regulation of internal temperature and humidity. Both manual and automatic ventilation modes are available, allowing growers to quickly adapt to seasonal weather changes and maintain crop-specific growing environments.
The high-performance PE film provides excellent heat retention, trapping warmth inside the greenhouse to maintain stable temperatures year-round. This significantly reduces energy consumption for heating during cold seasons, translating to substantial long-term cost savings for commercial growers.
Brand Name | Jinghao |
Size | Large |
Types Of | Multi-Span Agricultural Greenhouses |
Surface Material | Film |
Place Of Origin | China |
Frame Material | Hot-dip galvanized steel |
Cover Material | PO,PE Film |
Ventilation Systems | Top and side Ventlitions |
Optional System | Shading System, Cooling System |
Advantage | Super, strong, resistance |
Application | Vegetables, Flowers, and Seedling Raising |
Parameter | Details |
Frame Material | Hot-dip galvanized steel (≥0.5mm thickness) |
Cover Material | UV-resistant PE film (150-200 micron, 5-7 year lifespan) |
Spans | 3–5 spans (customizable) |
Height | 4m (peak) - Adjustable sidewall height |
Width per Span | 8m standard (custom widths available) |
Length | Extendable in 4m increments |
Ventilation | Roof vents + side roll-up curtains (manual or automatic) |
Door Options | Sliding or roll-up doors (2m width) |
Wind Resistance | Up to 25m/s (Beaufort Scale 10) |
Snow Load | Up to 0.35kN/m2 |
Foundation | Concrete, ground anchors, or perimeter base |
Accessories | Shade nets, heating systems, irrigation kits, insect nets, grow lights |
Warranty | 5 years on frame, 2 years on PE film |
This versatile seedling cultivation greenhouse caters to diverse agricultural needs, including commercial vegetable production, cut flower cultivation, seedling propagation, organic farming operations, and agricultural research trials. Its modular design allows for full customization to match the specific requirements of different crops and production scales.
Conduct quarterly checks for corrosion or structural damage on the steel frame, and touch up scratched areas with zinc-rich paint to prevent rust spread.
Clean the PE film monthly with mild detergent and water to remove dust buildup that reduces light transmission. Replace torn sections immediately to preserve insulation and temperature control.
Lubricate moving parts of vents and curtains every 6 months to ensure smooth operation. Inspect for worn components and replace as needed to avoid system failures.
Regularly test shade nets, irrigation systems, and heating units. Clean filters and nozzles to prevent clogging and ensure consistent performance across all auxiliary systems.
Reinforce the frame and clear excess snow promptly before heavy snowfall to avoid structural overload. Secure loose components and check foundation stability before extreme weather events.
Yes, we offer complete customization of span width, sidewall height, and overall length to fit your land layout and production goals. We can also adjust structural specifications to meet local building codes and weather requirements.
Yes, our experienced professional team delivers turnkey installation services worldwide, ensuring your greenhouse is built to exact specifications and ready for operation quickly. We also provide on-site guidance for self-installation projects.
We offer a full range of add-ons, including internal/external shading, cooling pad and exhaust fan systems, drip irrigation kits, insect nets, grow lights, and heating systems. All optional systems are fully integrated with the base greenhouse structure.
Yes, we provide enhanced structural options for regions with extreme weather conditions, increasing wind and snow load capacity as required. This includes thicker steel frames, reinforced trusses, and additional support columns.
