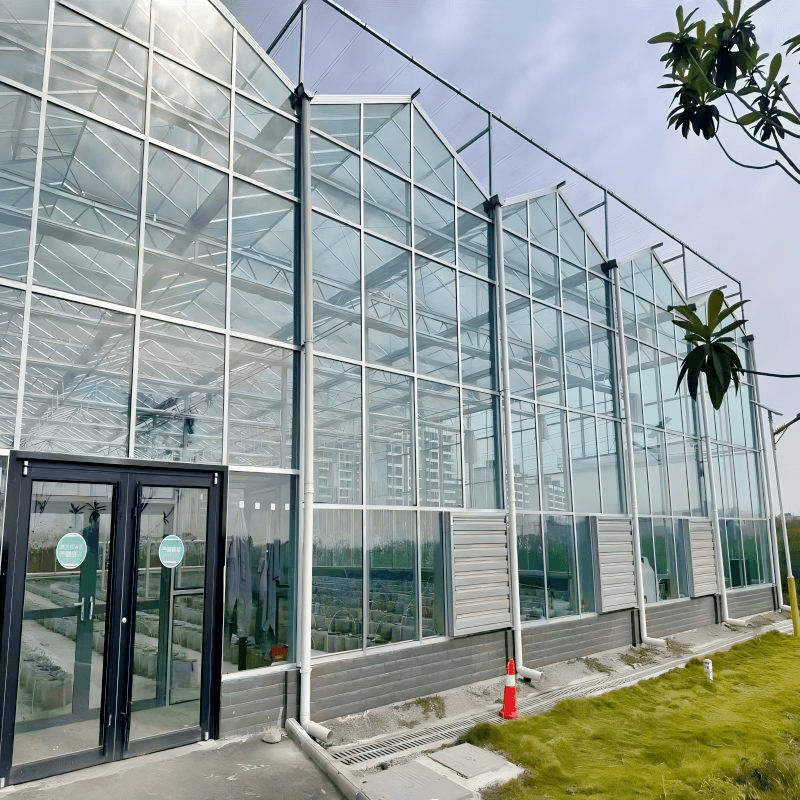

Our commercial fruit glass greenhouse is a high-end Venlo-type multi-span growing facility, tailor-made for large-scale agricultural enterprises and professional fruit growers focusing on high-value crops. This automated berry cultivation greenhouse adopts a reinforced hot-dip galvanized steel structure and high-transmission tempered glass cover, combining intelligent climate control and soilless cultivation systems. It breaks seasonal restrictions, creates a constant optimal growing environment for climbing fruits and berries, and effectively improves fruit quality, sugar content and annual output, becoming the preferred choice for commercial horticultural producers pursuing high-efficiency and year-round production.
The Q235/Q345 hot-dip galvanized steel skeleton has super load-bearing capacity, perfectly supporting the hanging cultivation of tomatoes, grapes and other vine fruits, with a frame service life of over 15 years.
4mm/5mm tempered float glass achieves 90%+ light transmittance, with UV-resistant and anti-drip functions, ensuring uniform light for fruit ripening and sugar accumulation.
Integrated shading, ventilation and intelligent fertigation systems support remote monitoring, reducing labor costs and realizing precise management of water and nutrients.
Compatible with substrate and hydroponic systems, it eliminates soil-borne diseases, reduces pesticide use and greatly increases the yield per unit area.
Span, height and length can be freely customized, with unlimited modular expansion to match the production scale of commercial agricultural operators.
Frame Structure Model | Venlo Type Multi-span Hot-dip Galvanized Steel Glass Greenhouse |
Frame Material | Q235/Q345 Hot-dip Galvanized Steel |
Covering Material | 4mm/5mm Tempered Float Glass (UV-resistant, anti-drip) |
Standard Span | 9.6m / 10.8m / 12m / 16m (fully customizable) |
Bay Spacing | 4m / 8m (fully customizable) |
Column Height | 4m / 5m / 6m (fully customizable) |
Ridge Height | 5.5m / 7m / 8.5m (fully customizable) |
Length | Unlimited, modular extension by bays |
Wind Load Resistance | ≥ 0.55kN/m² |
Snow Load Resistance | ≥ 0.45kN/m² |
Light Transmittance | 90%+ |
HS Code | 9406900090 |
Service Life (Frame) | 15+ Years |
Service Life (Glass) | 20+ Years |

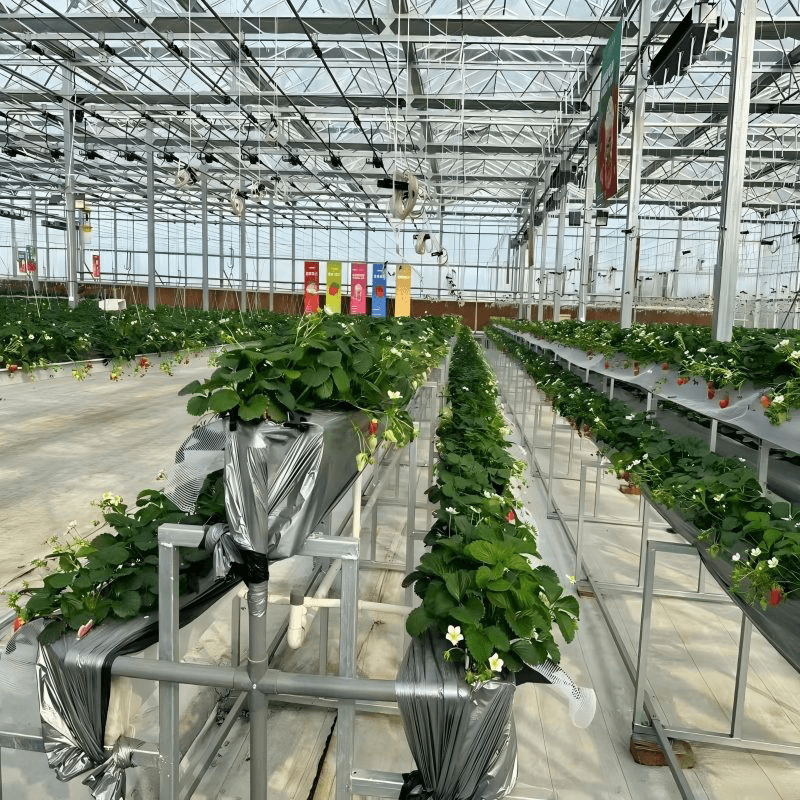

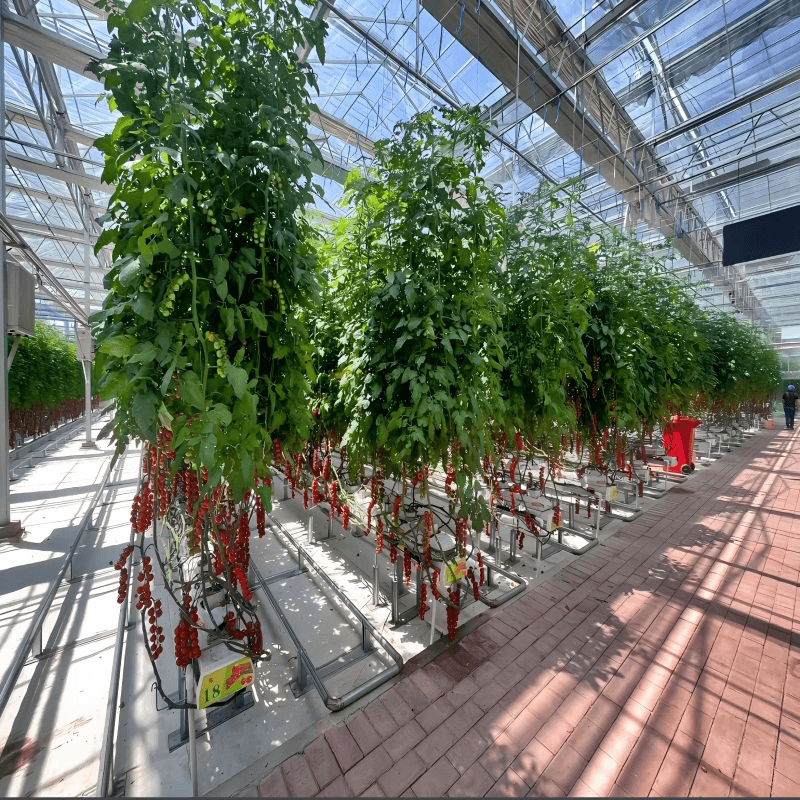

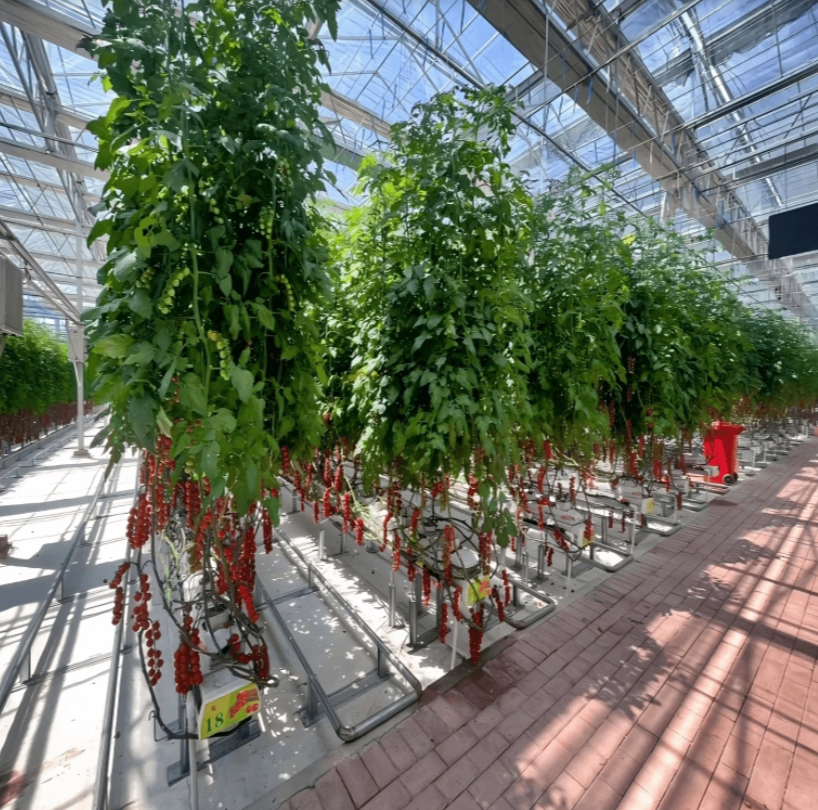

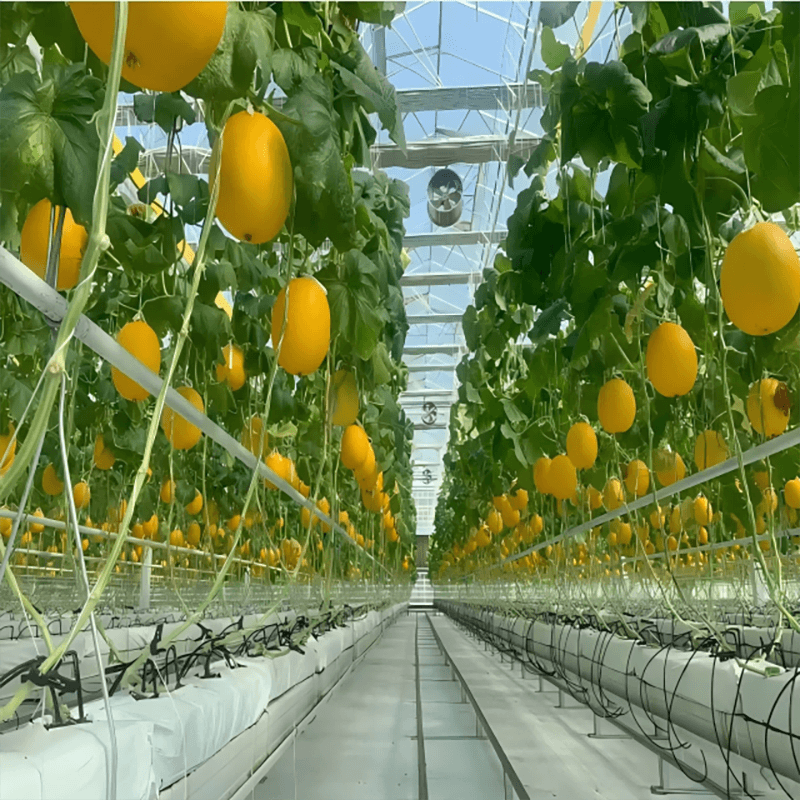

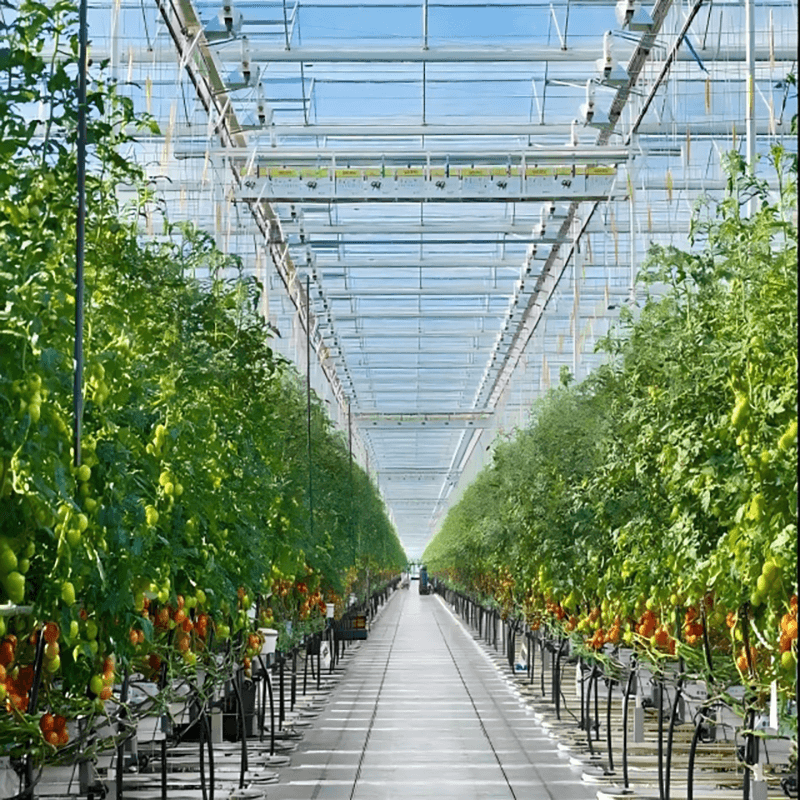

This multi-span fruit glass greenhouse is widely used in commercial berry and fruit production bases, off-season high-value fruit planting for domestic and export markets, modern agricultural demonstration parks, fruit picking agri-tourism parks, and fruit seedling breeding nurseries. It is suitable for strawberries, melons, tomatoes, grapes and other climbing fruits, meeting the diversified planting needs of large-scale farming enterprises.
Pre-operation: Check steel frame tightness, glass sealing, hanging systems and circuit connections daily.
Climate control: Set temperature, humidity and ventilation parameters via the intelligent cabinet to start automatic equipment.
Fertigation management: Program the system to supply water and nutrients according to crop growth stages.
Daily maintenance: Clean glass regularly to maintain light transmittance and check for nozzle blockages.
Regular overhaul: Monthly maintenance of electrical parts and annual structural inspection to ensure stable operation.
It has high space for vine cultivation, uniform light supply and precise climate control, which extends the harvest period and improves fruit quality and commercial value.
Yes, the reinforced steel structure is specially designed for heavy-load hanging cultivation of various climbing fruit crops.
It avoids soil-borne diseases, reduces pesticide usage, and achieves precise nutrient control for higher and safer yields.
All dimensions including height and span are fully customizable to adapt to the growth habits of various fruits.
The standard HS code is 9406900090, and the final code is subject to local customs regulations.
