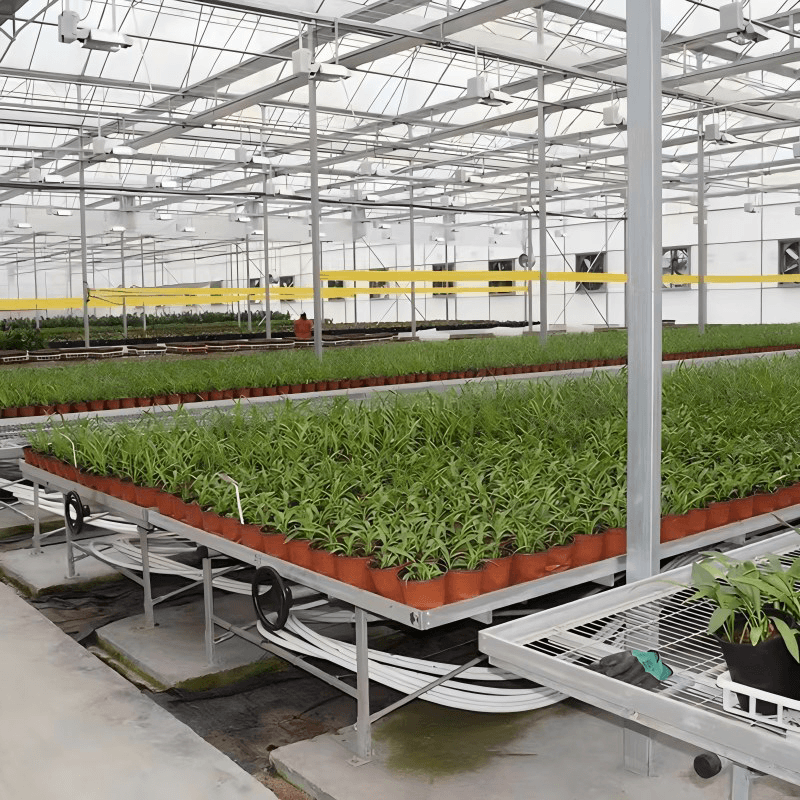

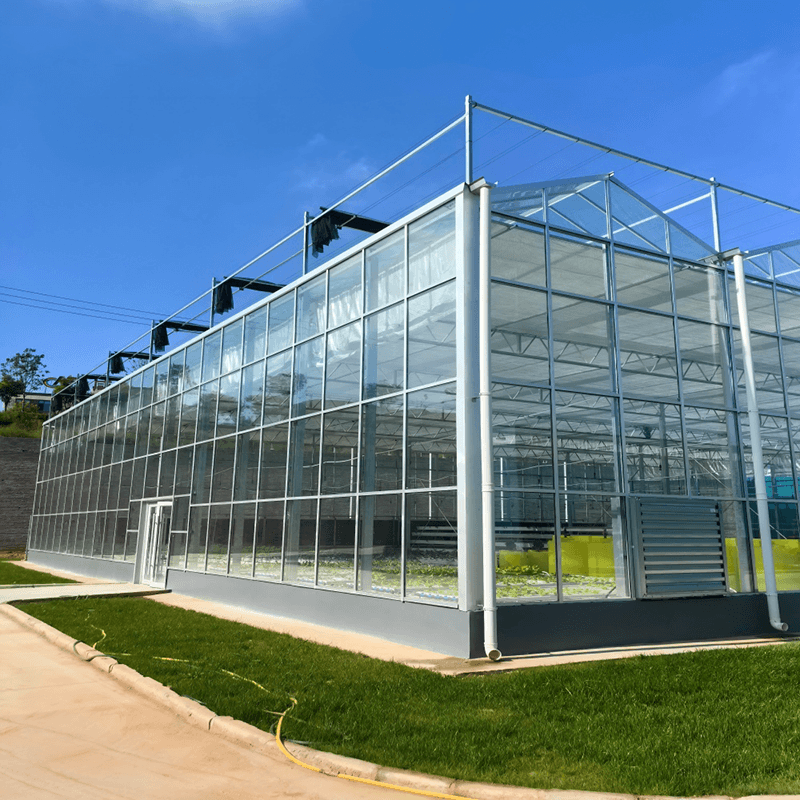

The Venlo-type multi-span glass seedling greenhouse is a high-end intelligent agricultural facility developed for large-scale commercial nursery companies and modern agricultural industrial parks. As a precision-engineered automated seeding facility, it adopts a heavy-duty Q235/Q345 hot-dip galvanized steel skeleton and 4mm/5mm UV-resistant tempered float glass, achieving 90%+ high light transmittance and full intelligent climate control. This commercial tempered glass nursery greenhouse is equipped with movable seedling beds and precise fertigation systems, breaking seasonal restrictions and realizing year-round high-quality seedling propagation. It is the core equipment for large-scale, standardized and export-oriented seedling production projects.
The anti-drip tempered glass seedling greenhouse uses high-transmission float glass with no shadow zones, ensuring uniform natural light for seedlings. The UV-resistant and anti-drip design avoids water droplet damage to young buds, effectively improving seedling survival rate and growth consistency.
The reinforced hot-dip galvanized steel frame has superior wind and snow resistance, with a wind load ≥0.55kN/m² and snow load ≥0.45kN/m². The frame service life reaches 15+ years, and the glass service life exceeds 20 years, supporting long-term stable operation of commercial projects.
Integrated shading, thermal insulation, ventilation and precision irrigation systems realize one-click intelligent control of temperature, humidity and light. It provides a constant sterile growing environment, reducing seedling diseases and improving nursery efficiency by 40% compared with traditional facilities.

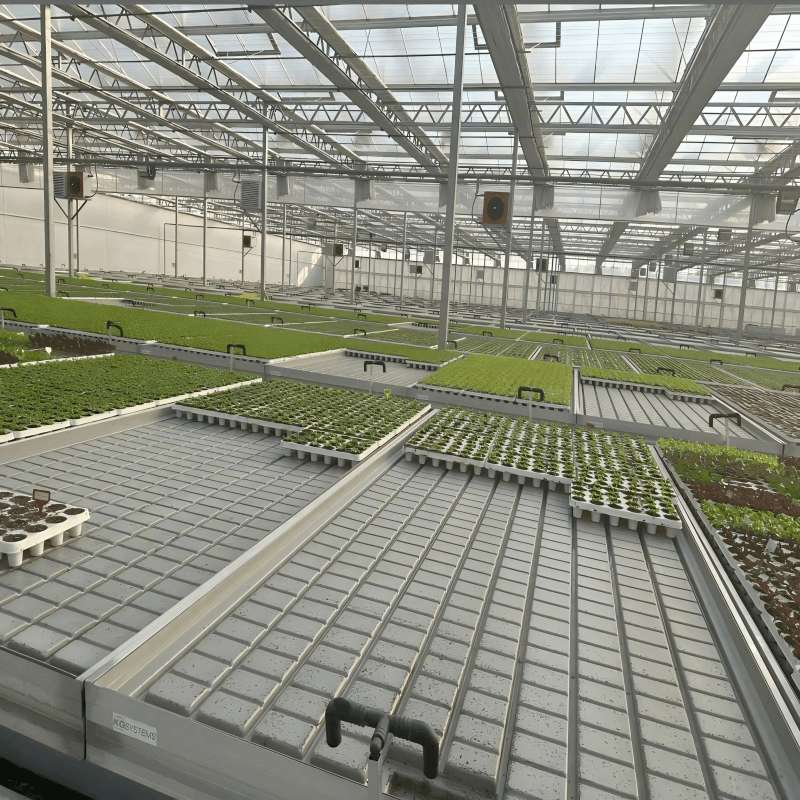

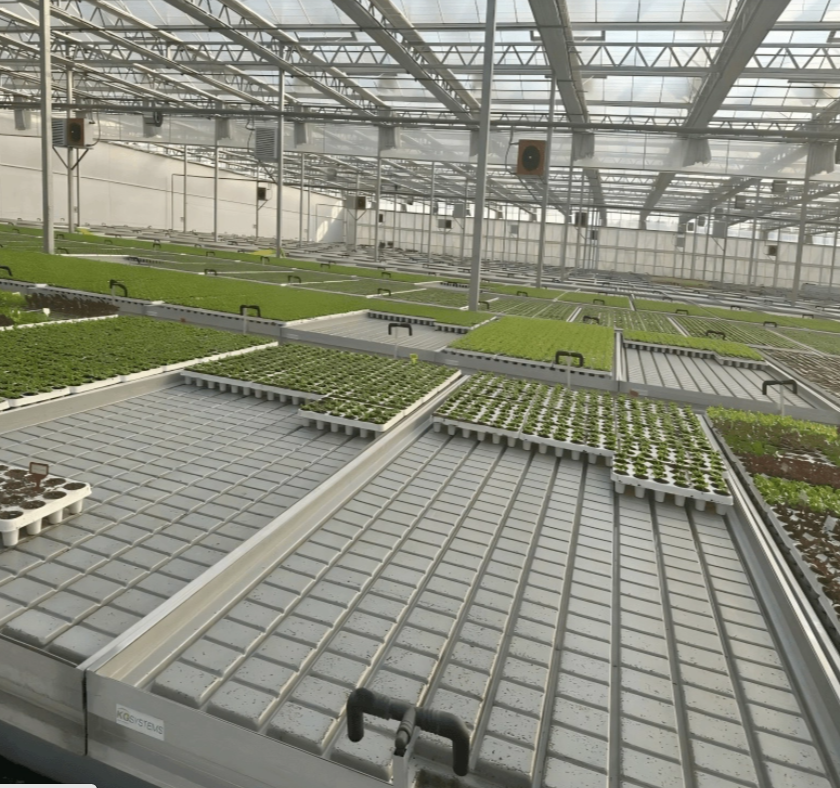

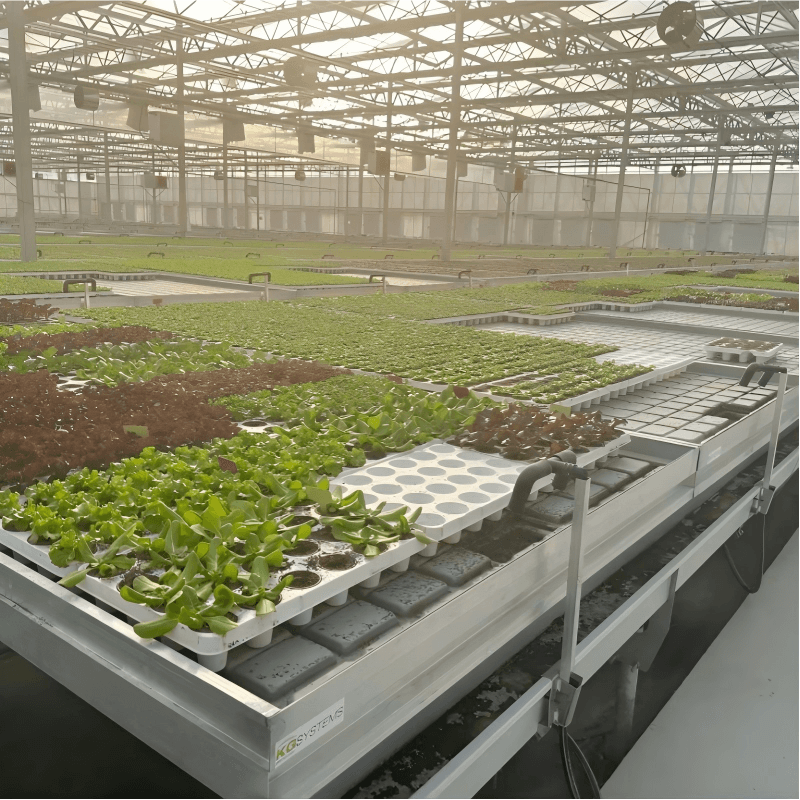

The modular multi-span structure with rolling seedling benches maximizes land utilization rate, which is especially suitable for batch management of commercial seedlings and large-scale intensive production.
Parameter | Standard Value | Customization Support |
Greenhouse Type | Venlo-Type Multi-Span Glass Greenhouse | Yes |
Frame Material | Q235/Q345 Hot-Dip Galvanized Steel | Yes |
Covering Glass | 4mm/5mm Tempered Float Glass | Yes |
Standard Span | 9.6m/10.8m/12m | Fully Customized |
Column Height | 3m/4m/5m | Customized |
Ridge Height | 4.5m/6m/7.5m | Customized |
Light Transmittance | ≥90% | Stable |
Wind Load Resistance | ≥0.55kN/m² | Upgraded Available |
Frame Service Life | 15+ Years | Extended Maintenance |
Glass Service Life | 20+ Years | Replacement Support |
This intelligent commercial seeding greenhouse covers multiple high-end agricultural application scenarios. It is suitable for large-scale commercial propagation of vegetable and flower seedlings, tissue culture seedling hardening, fruit tree and landscape nursery stock breeding. It is also widely used in modern agricultural demonstration parks, agricultural technology training bases and export-oriented seedling production enterprises, meeting the high-standard seedling raising needs of professional agricultural operators.
Complete pre-operation checks of steel frame connections, glass sealing and electrical systems before daily startup. Set precise temperature and humidity parameters through the intelligent control cabinet to realize automatic ventilation and shading adjustment. Program the fine sprinkler irrigation system to supply nutrients gently, preventing seedling scouring and damping-off diseases. Clean the glass surface monthly to maintain high light transmittance, and check nozzles and fans for blockages regularly. Adjust thermal insulation and cooling equipment according to seasonal changes, and conduct annual overall structural inspection.
Yes, all spans, heights and system configurations can be 100% customized according to your seedling types and local climate conditions.
We provide one-stop services including design, manufacturing, installation and global technical support for professional nursery enterprises.
The standard HS code is 9406900090, and we can provide customized customs declaration documents for export orders.
Yes, the intelligent climate control system breaks seasonal limitations and supports continuous seedling propagation all year round.
