This double film agricultural greenhouse adopts a double-layer arch beam structure and multi-layer thermal insulation design, solving the problem of low-temperature planting in cold regions. Relying on natural heat accumulation technology and high-quality thermal insulation materials, it achieves low-cost constant temperature cultivation for winter vegetables and flowers, becoming the preferred solution for cold-climate commercial agricultural production and solar agricultural projects.

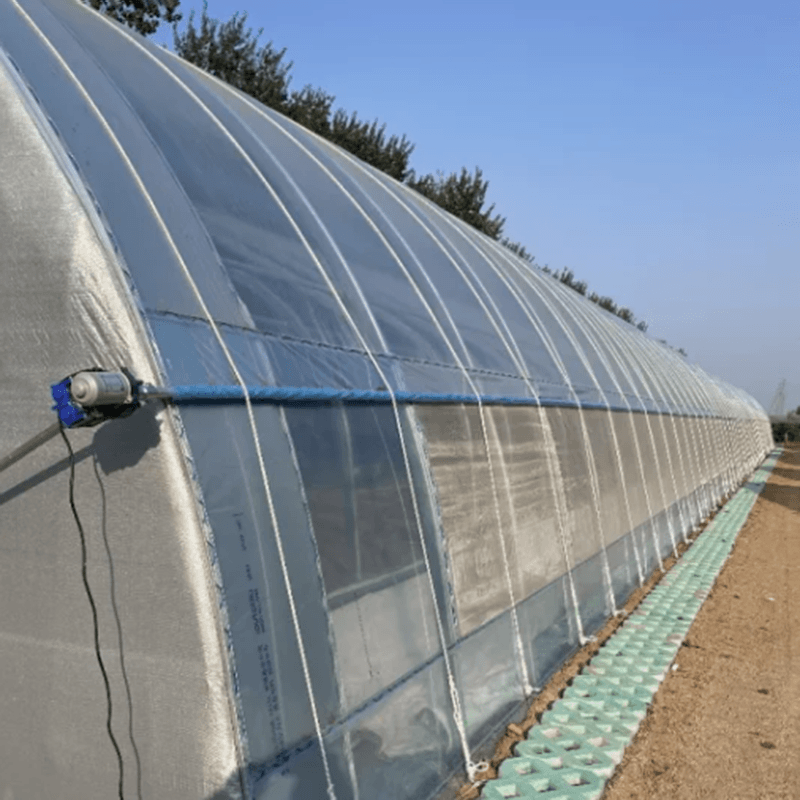

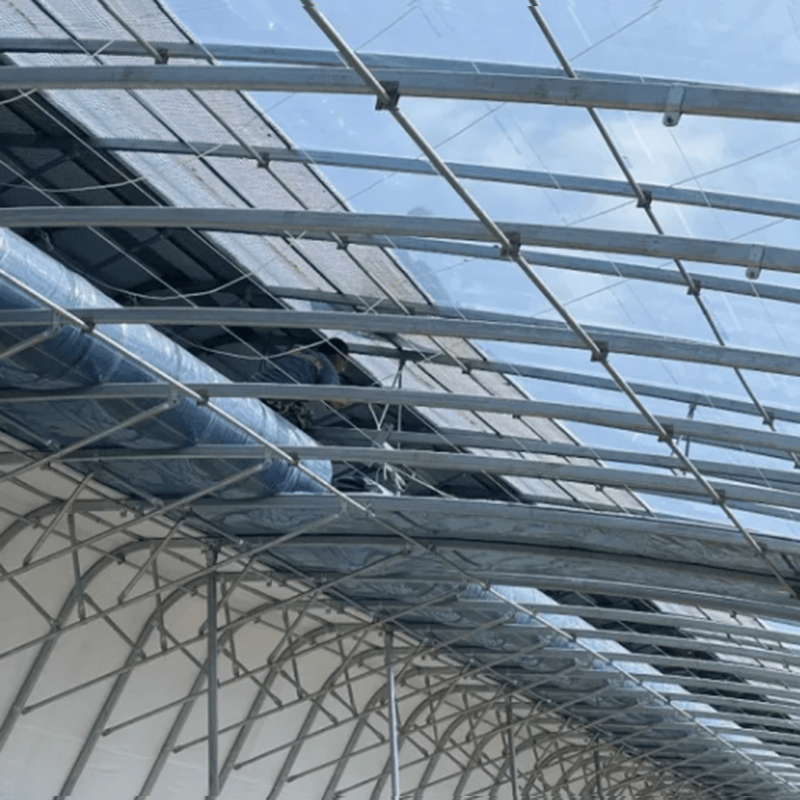

The double-layer arch beam and double covering film greenhouse form an air insulation layer, greatly reducing heat loss and improving internal thermal retention efficiency.

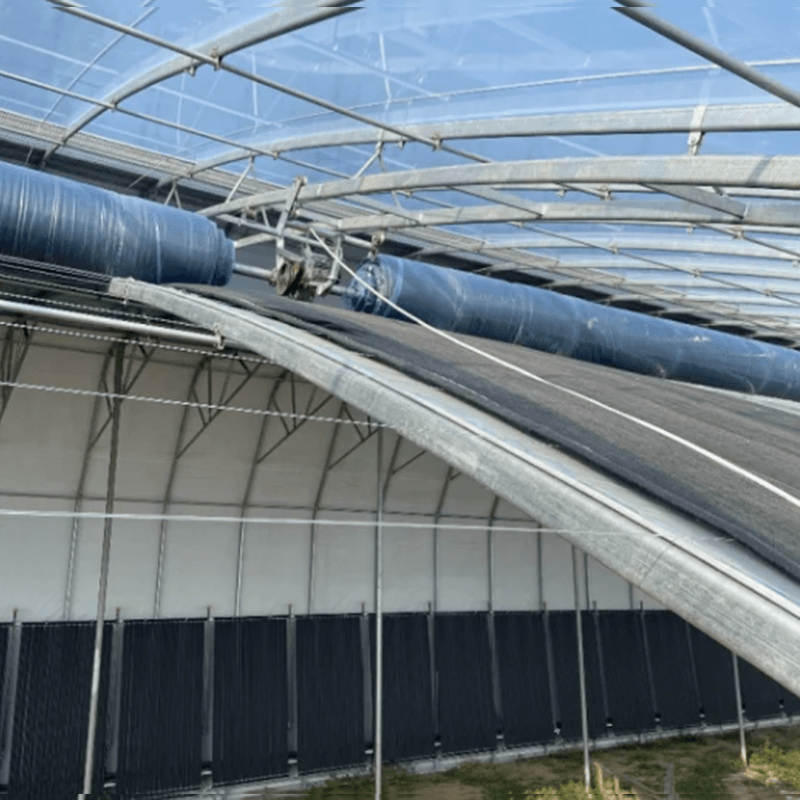

The matched thickened insulation quilt can be deployed at night, combining non-woven fabric and air layer to lock heat, suitable for extreme low-temperature environments.
It absorbs solar energy automatically to realize heat storage and release, no extra heating equipment needed, cutting operation costs for commercial farms.

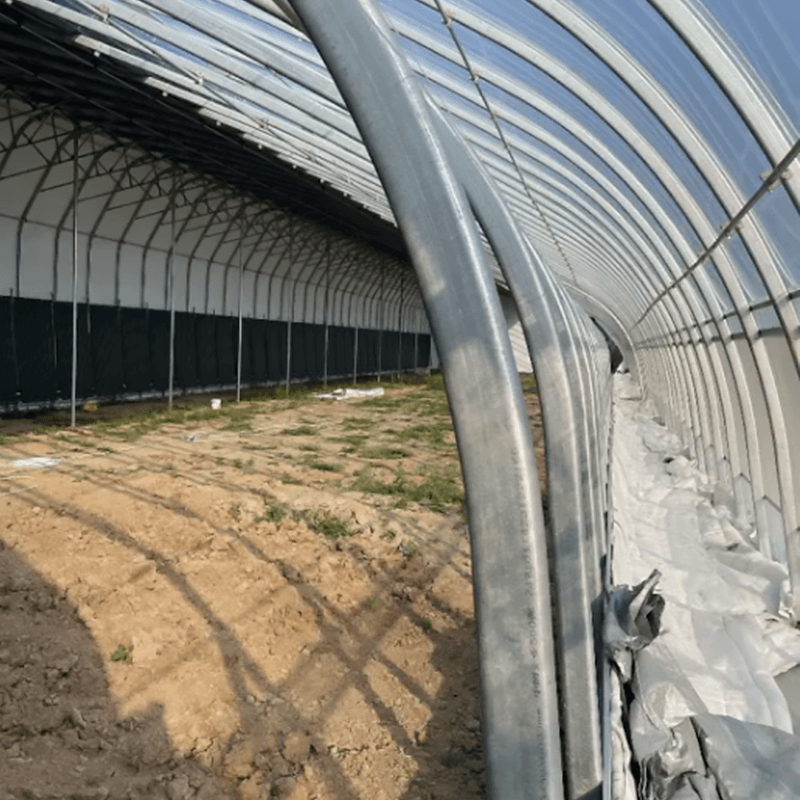

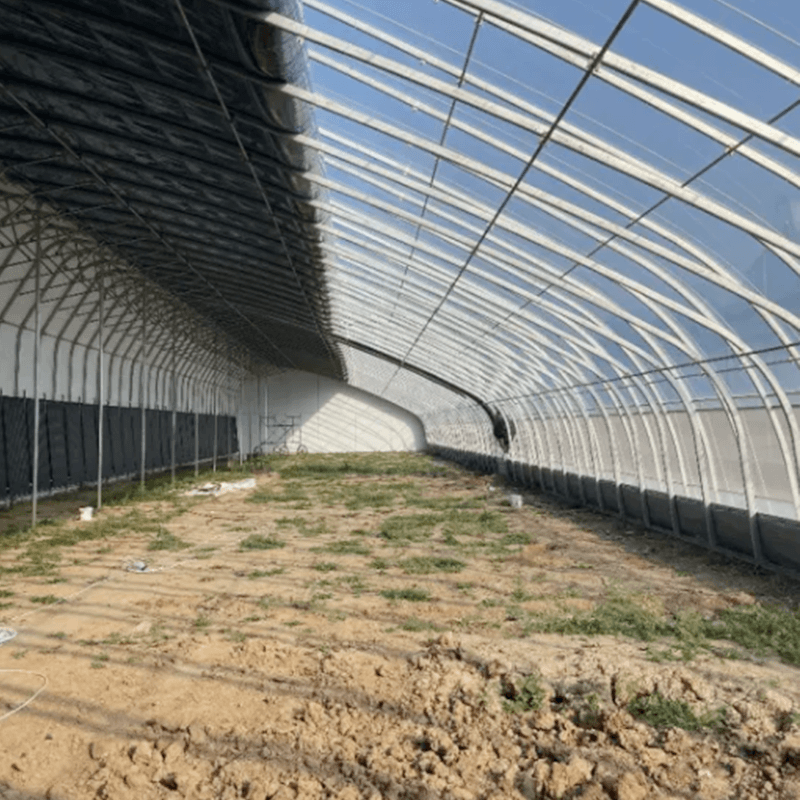

The elliptical hot-dip galvanized steel frame is easy to assemble and disassemble, with strong load-bearing capacity and long-term anti-rust performance.
Brand Name | Jinghao |
Size | Large |
Types Of | Single-Span Agricultural Greenhouses, Solar Agricultural Greenhouses |
Surface Material | Film |
Place Of Origin | China |
Span | 8-12m |
Length | 20-120m/customized |
Height | 3-5m |
Film Type | PO/PE/EVA |
Layer | Single, Double |
Film Thickness | 0.08/0.09/0.10/0.12/0.15/0.20mm |
Frame Material | Hot-dip Galvanized Steel |
Frame Style | Elliptical Tube |
Frame Installation | can be easily Assembled/Disassembled |
Wall Style | Air Insulation Wall-3 Sides Covered by Quilt+Non-woven Fabric |
Heat Preservation | Quilt+Non-woven Fabric+Film+Air Insulation Layer |
This winter crop insulated greenhouse is ideal for agricultural facility distributors, cold-region vegetable planting bases, commercial flower nurseries, solar agricultural demonstration areas and seasonal crop production farms. It adapts to soil wall, brick wall and air insulation wall structures, perfectly matching the low-cost planting needs of large-scale winter commercial agriculture.
Check the tightness of the film fixing clamps monthly to prevent air leakage and reduce insulation effect. Retract the insulation quilt in sunny days to avoid rain and sun damage, extending its service life. Clean the surface of the covering film regularly to ensure high light transmittance for natural heat accumulation. Inspect the steel frame joints quarterly and tighten loose parts to maintain structural stability in windy weather.

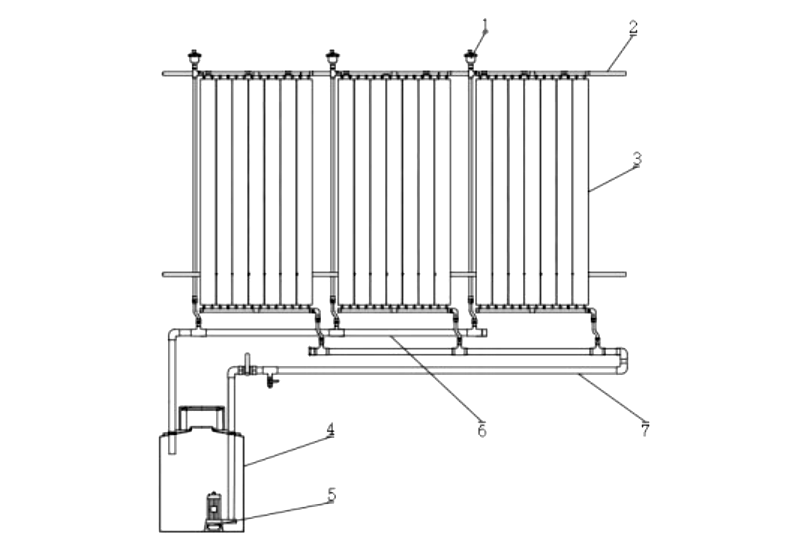

Automatic Heat Accumulation and Releasing System Schematic
We provide 0.08mm, 0.10mm, 0.15mm and 0.20mm thick PO/PE/EVA films, with a service life of about 5 years.
Yes, the multi-layer insulation design can effectively resist low temperatures, specially designed for winter commercial crop cultivation.
We support customization of soil wall, brick wall and sandwich panel wall structures to adapt to different regional construction needs.
