The high-efficiency Venlo glass greenhouse for hydroponics is a premium, modular growing solution designed for commercial crop producers, agricultural research centers, and vertical farming enterprises. Combining a robust hot-galvanized steel frame with high-transparency tempered glass, this structure delivers superior light penetration and thermal insulation, enabling year-round cultivation of high-value hydroponic crops. Equipped with smart climate control and water-saving technologies, it achieves 30% energy savings and 50% water reduction compared to conventional greenhouses. With a 20+ year lifespan and automation-ready design, it is the gold standard for sustainable, high-yield commercial hydroponic production.

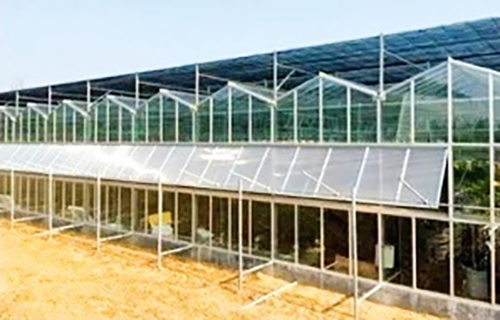

The iconic Venlo structure features enhanced roof ventilation, allowing for efficient hot air exhaust and fresh air intake. This creates uniform temperature and humidity distribution across the entire growing area, eliminating hot spots and ensuring consistent crop growth.

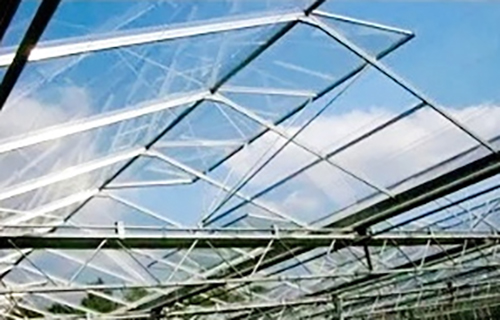

High-quality tempered glass panels provide 90%+ light transmission, maximizing photosynthesis and accelerating crop maturity. Double-hollow glass side panels offer excellent thermal insulation, reducing heating costs in cold climates.

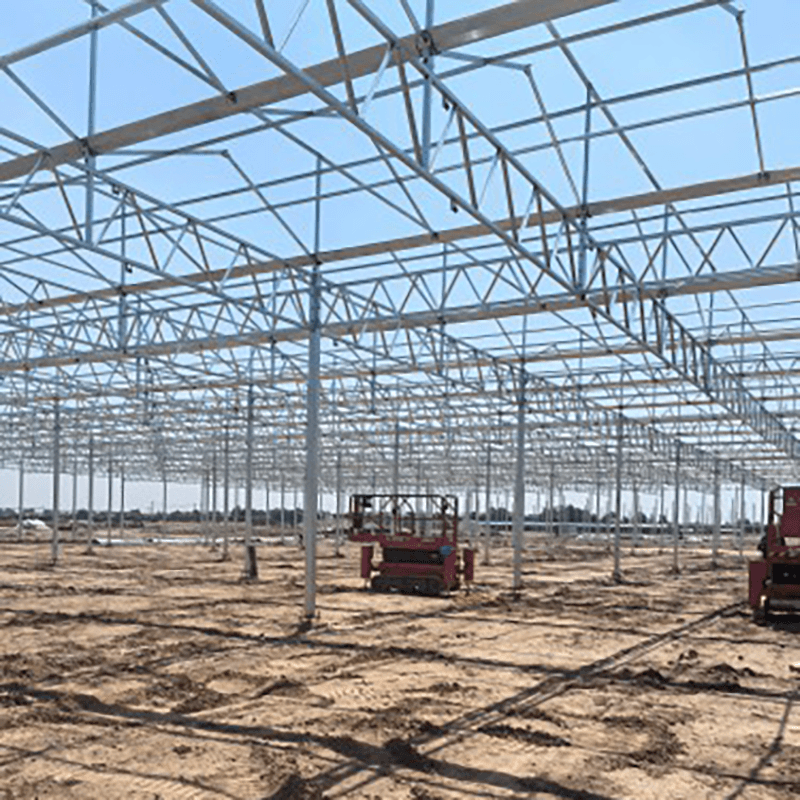

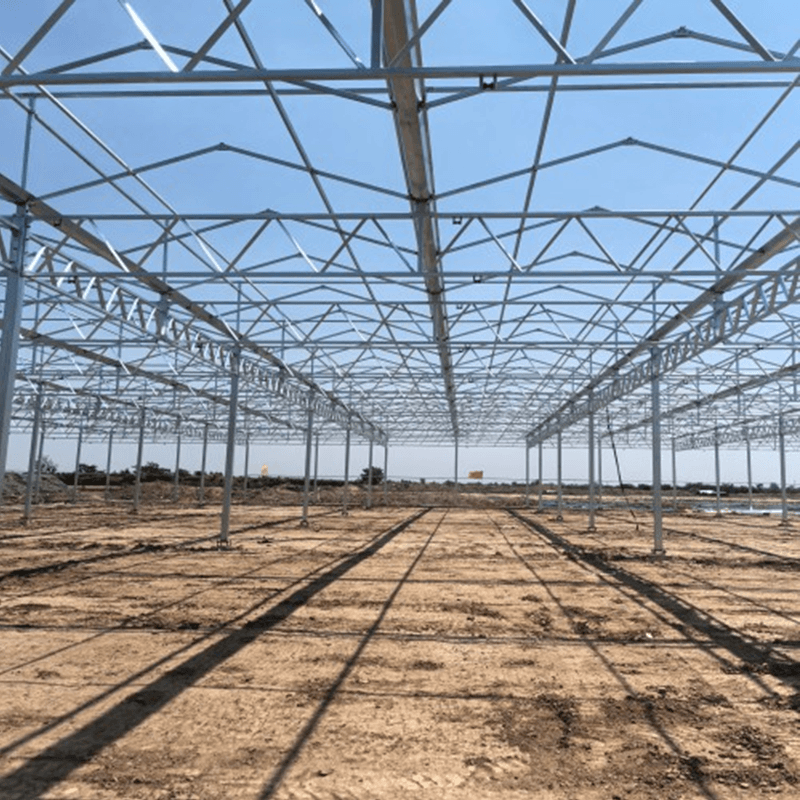

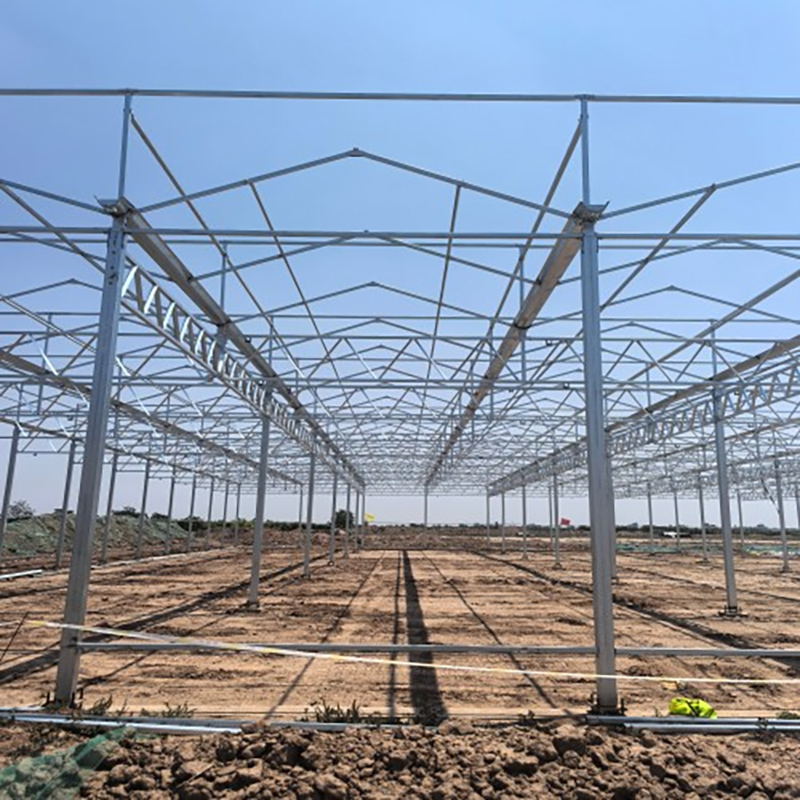

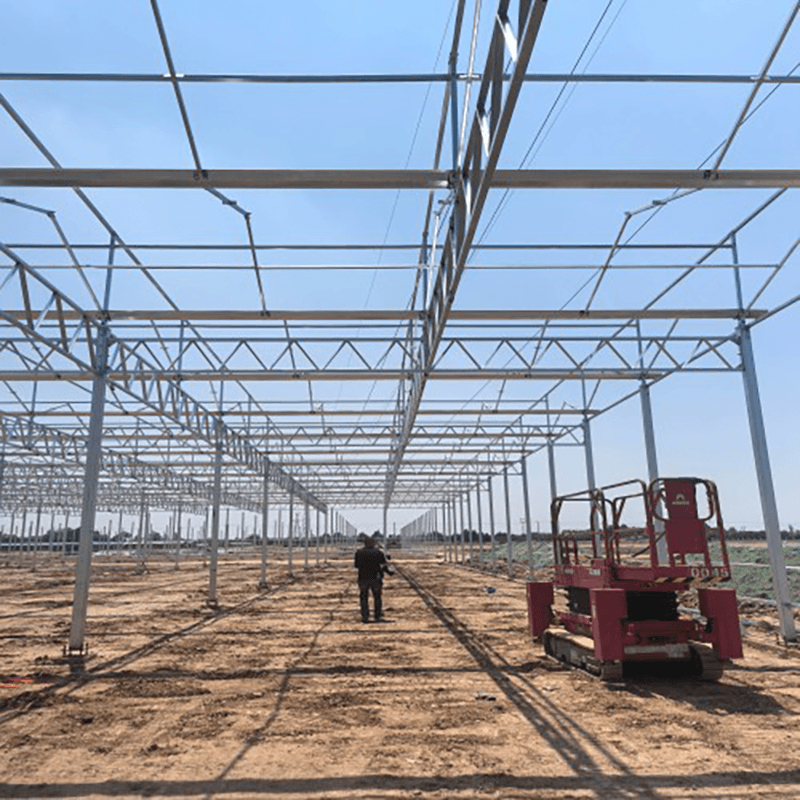

The hot-galvanized steel frame is corrosion-resistant and engineered to withstand wind loads of 0.5kN/m² and snow loads of 0.5kN/m². The modular design allows for easy expansion and modification as your business grows.

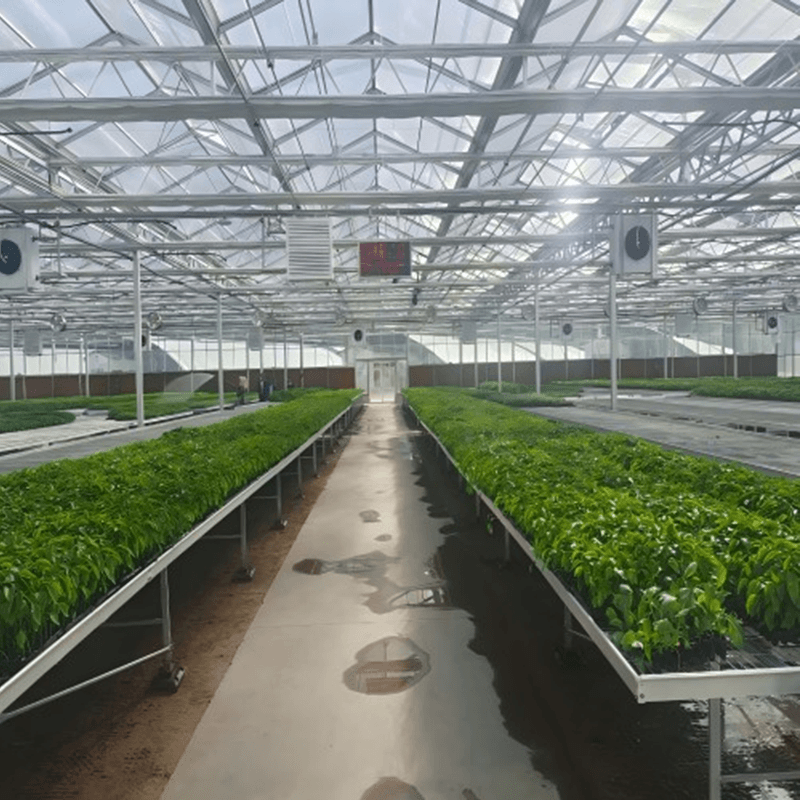

This commercial hydroponic greenhouse supports full integration with smart systems for irrigation, heating, shading, and CO₂ enrichment. Automated controls reduce labor costs and ensure precise, consistent growing conditions.

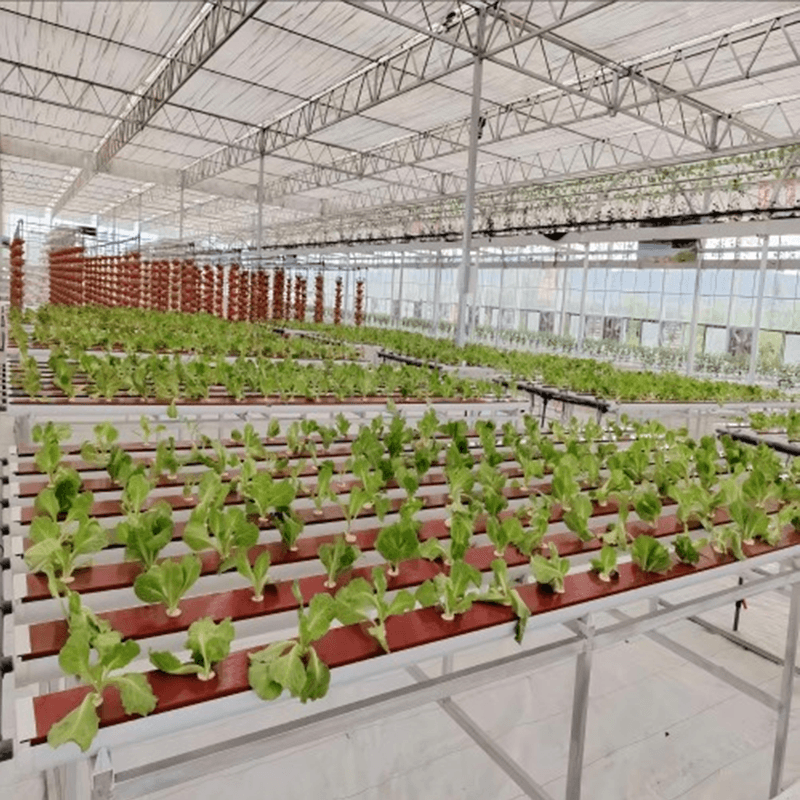

The spacious interior and high gutter height accommodate all major hydroponic systems, including NFT, DWC, and aeroponics. This flexibility allows you to grow a wide range of crops, from leafy greens to vine fruits.
Brand Name | Jinghao |
Size | Large |
Types Of | Multi-Span Agricultural Greenhouses |
Surface Material | Glass |
Place Of Origin | China |
Structure Hot Galvanized Steel Frame | Hot Galvanized Steel Frame |
Cover Material Glass | Glass |
Top Window | Long or Staggered |
Specification | Customization |
Systems | Cooling /heating/irrigation/ventilation |
Layer | Single |
Glass Type | Hollow glass, single layer glass |
Span Width | 9.6m 10.8m 12m |
Column Space | 4m 8m |
Gutter Height | 4-6m |
Top Height | 5-7m |
Wind Load | 0.5kn/m2 |
Snow Load | 0.5kn/m2 |
Frame | Hot dip galvanized steel |
Top Covering Material | Tempered glass 4mm or 5mm |
Four Sides Covering Material | 5+6A+5mm double hollow glass |
Shading System | Insides or outside shading system |
Commercial hydroponic vegetable and herb production
High-value flower and ornamental plant cultivation
Agricultural research and plant breeding facilities
Vertical farming and urban agriculture projects
Medicinal plant and specialty crop production
Check glass panels quarterly for cracks or chips, and replace damaged sections to maintain insulation and light transmission. Clean glass surfaces bi-annually to remove dirt and debris.
Inspect steel joints annually for corrosion and apply touch-up galvanizing as needed. Tighten all bolts and check foundation stability to ensure long-term structural safety.
Clean roof vents and lubricate hinges bi-annually to ensure smooth operation of the ventilation system. Test exhaust fans and cooling pads before peak growing seasons.

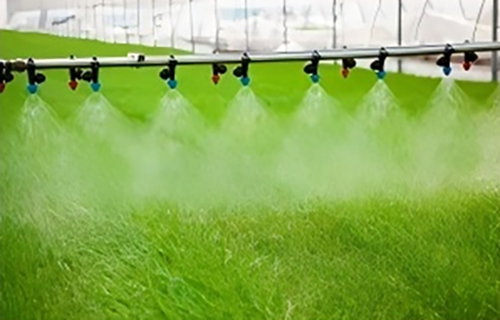

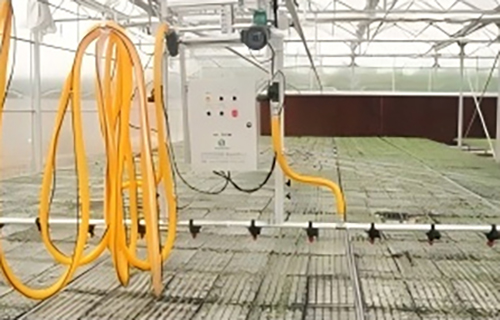

Inspect pipes, nozzles, and pumps monthly for leaks or clogs. Calibrate nutrient delivery systems to ensure accurate dosing and optimal crop nutrition.
Deploy external shading before summer and retract it before winter as part of seasonal shading system maintenance. Inspect shading nets for tears and replace worn components promptly.
Double-hollow glass provides significantly better thermal insulation, reducing heating costs by up to 30% in winter. Single-layer glass is more cost-effective for warmer climates.
Yes, the modular design allows for seamless expansion by adding additional bays. Our team can provide custom expansion plans tailored to your site.
It supports all major hydroponic systems, including NFT, DWC, aeroponics, and drip irrigation. We can also design custom layouts for specific crop requirements.
