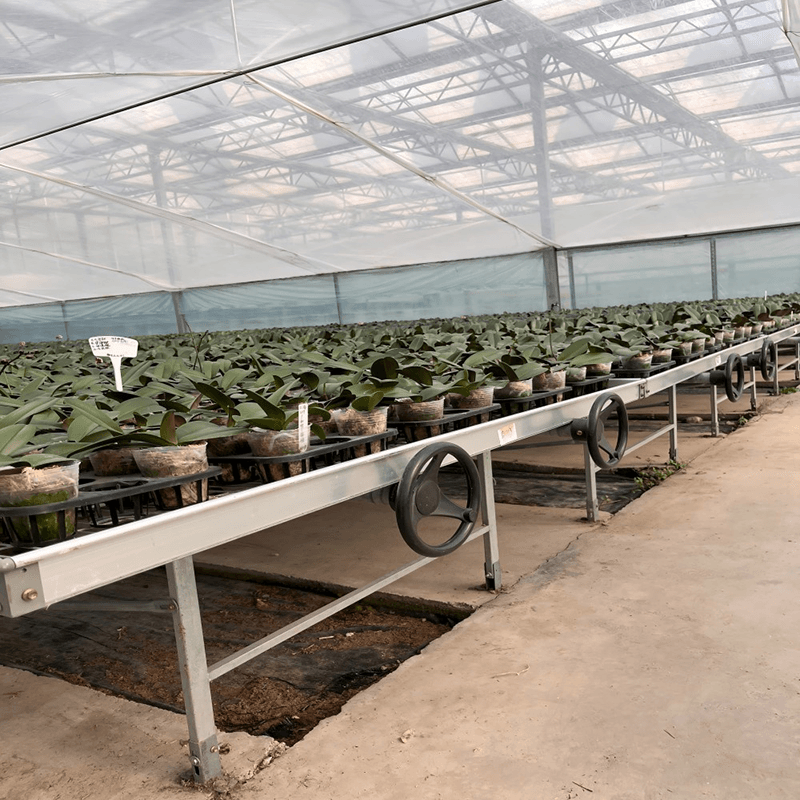

The moth orchid cultivating glass greenhouse from Jinghao is a state-of-the-art Venlo-type agricultural facility specifically designed to meet the precise growing requirements of moth orchids and other high-value ornamental plants. This advanced greenhouse integrates cutting-edge climate control technologies, including an external shading system, dual-layer internal insulation, fan-and-pad cooling, and a water-source heat pump system. These systems work in perfect harmony to create a stable, year-round growing environment that ensures consistent flower quality and maximum production yields for commercial flower growers and horticultural enterprises.
Precision Climate Control: Features a sophisticated integrated climate control system that maintains optimal temperature, humidity, and light levels 24/7. The water-source heat pump provides both heating and cooling, delivering precise temperature control within ±1°C, critical for successful moth orchid cultivation.

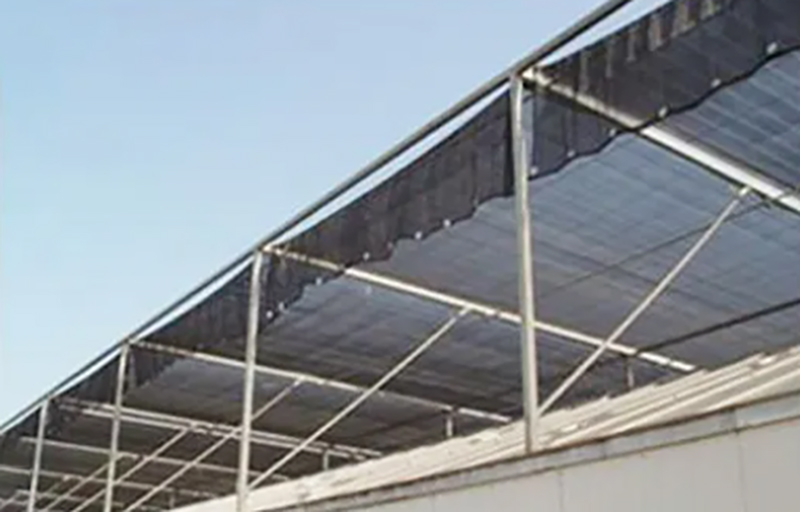

Energy-Efficient Design: The dual-layer internal insulation system, consisting of quilt and film layers, significantly reduces heat loss during winter months, cutting heating costs by up to 40%. The external shading system, with a 75% shading rate, effectively blocks excess solar radiation, preventing overheating and reducing cooling energy consumption.
Specialized Floriculture Engineering: The Venlo roof design maximizes light diffusion and distribution, ensuring uniform growth across all plants. The high gutter and top heights provide ample vertical space for orchid benches and hanging baskets, optimizing growing density.

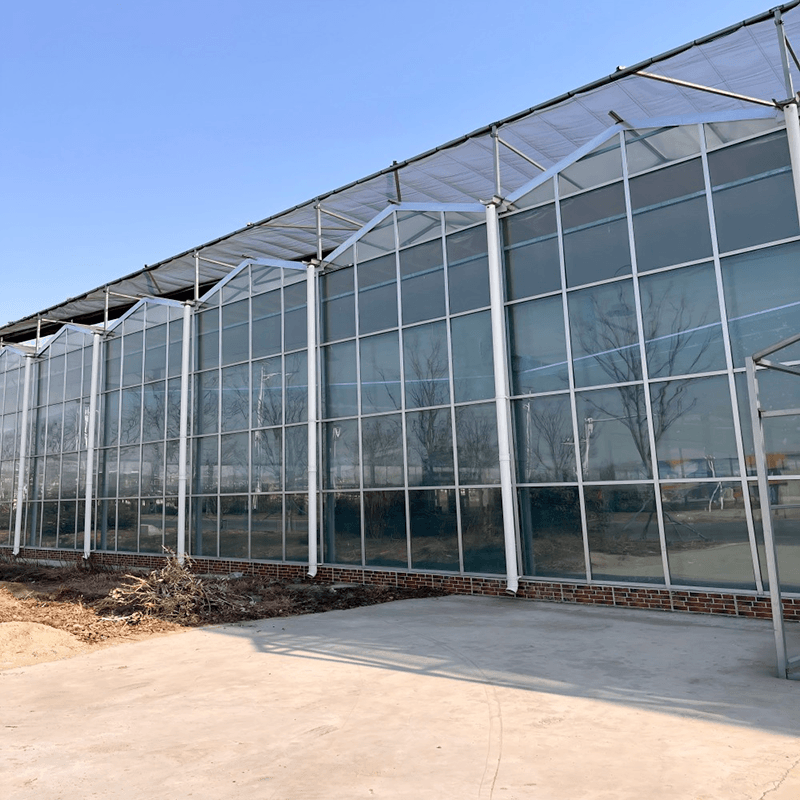

Robust Construction: Built with hot-dip galvanized steel frames that offer superior corrosion resistance and structural strength. The tempered glass covering provides excellent light transmission while ensuring safety and durability.
Comprehensive System Integration: Comes pre-configured with all essential systems for orchid cultivation, including ventilation, shading, cooling, heating, and irrigation. All systems can be centrally controlled for simplified operation and management.
Brand Name | Jinghao |
Size | Large |
Types Of | Multi-Span Agricultural Greenhouses |
Surface Material | Glass |
Place Of Origin | China |
Frame Material | Hot-Dip Galvanized Steel |
Cover Material | Glass |
Insulation | Quit and film |
Systems | Shading, Ventilation, cooling |
Roofing Shape | Venlo |
Span | Multi |
Span Width | 9.6m 10.8m 12m |
Column Space | 4m 8m |
Gutter Height | 4-6m |
Top Height | 5-7m |
Wind Load | 0.5kn/m2 |
Snow Load | 0.5kn/m2 |
Frame | Hot dip galvanized steel |
Top Covering Material | Tempered glass 4mm or 5mm |
Four Sides Covering Material | 5+6A+5mm double hollow glass |
Shading System | Insides or outside shading system |
While specifically optimized for moth orchid cultivation, this agricultural glass greenhouse is also highly suitable for growing a wide range of other high-value ornamental plants, including phalaenopsis, cymbidium, anthurium, and peace lilies. It is ideal for commercial cut flower production, potted plant cultivation, flower propagation, and plant tissue culture. Additionally, it can be used for botanical research, educational displays, and high-end floral exhibition spaces.
Insulation System Care: Inspect the dual-layer insulation system annually for tears or damage. Repair any holes promptly to maintain thermal efficiency. Clean the film layer gently to remove dust and debris, ensuring optimal light diffusion.

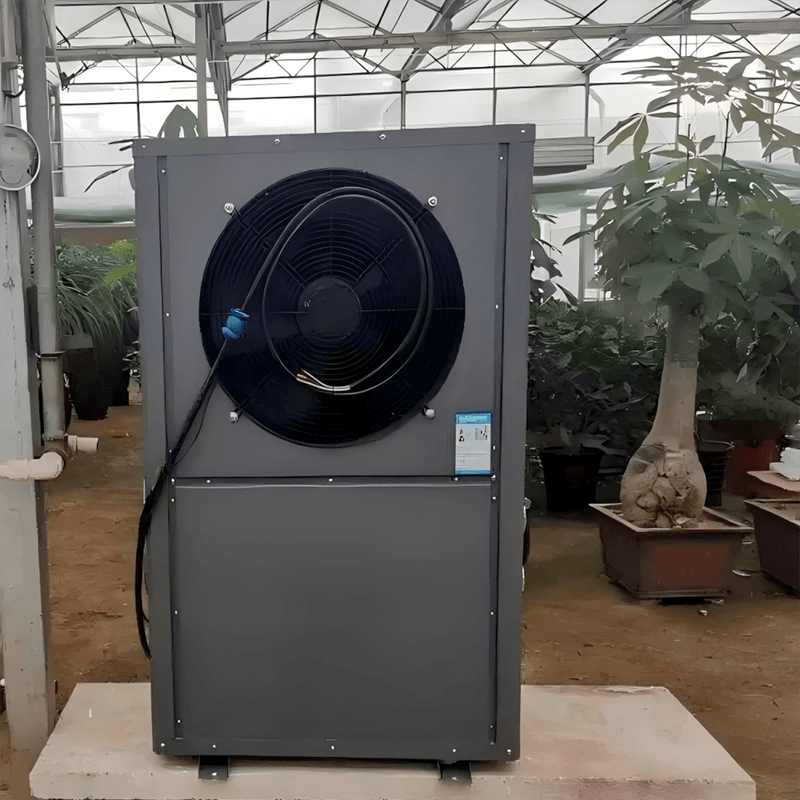

Heat Pump Maintenance: Schedule professional maintenance of the water-source heat pump twice yearly. Check refrigerant levels, clean filters, and inspect all electrical connections to ensure efficient and reliable operation.

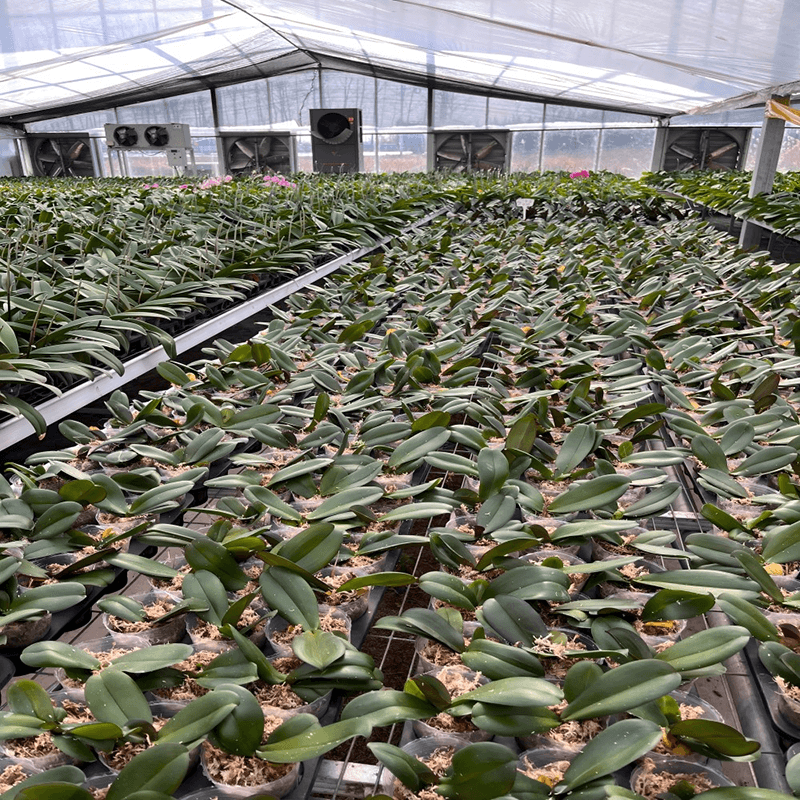

Fan-and-Pad System: Clean the cooling pads monthly during the cooling season to remove mineral deposits and algae buildup. Lubricate fan motors and check belt tension regularly. Replace worn pads every 2-3 years.
Structural Inspection: Conduct quarterly inspections of the steel frame and glass panels. Tighten loose fasteners and replace any cracked or broken glass immediately to prevent water damage and maintain structural integrity.
Product Model | RHS - 078 - H |
Rated Water Flow | 2.5 cubic meters per hour |
Rated Power Supply/Frequency | 380 Volts / 50 Hertz |
Maximum Air Volume | 8000 cubic meters per hour |
Nominal Heating Capacity | 29 Kilowatts |
Working Environment Range | - 30 to 43 degrees Celsius |
Nominal Cooling Capacity | 32 Kilowatts |
Allowable Pressure On Discharge Side | 3.0 Megapascals |
Rated Power | 5.5 Kilowatts |
Allowable Pressure On Water - Source | 0.6 Megapascals |
Maximum Power | 7.5 Kilowatts |
Anti - Electric Shock Grade | IPX4 |
Refrigerant/Charge Quantity | R22 / 3.6 kilograms |
Waterproof Grade | Class I |
Noise | ≤ 55 decibels |
Unit Dimensions | 810 470 1550 millimeters |
Net Weight Of Unit | 150 kilograms |
Production Number | 010 |
Manufacturing Company | Jiangsu Jinghao Agricultural |
Service Telephone | 18068937888 |
While specifically designed for moth orchids, it can be easily adapted to grow a wide variety of other flowers and plants that require precise climate control.
The water-source heat pump is highly energy-efficient, consuming only 1kW of electricity to produce 4-5kW of heating or cooling energy, significantly reducing operational costs.
Yes, we offer fully automated climate control systems that can be programmed and monitored remotely via smartphone or computer, allowing for 24/7 management.
We can construct greenhouses of virtually any size, from small commercial units to large-scale facilities covering several hectares, customized to your specific land dimensions.
