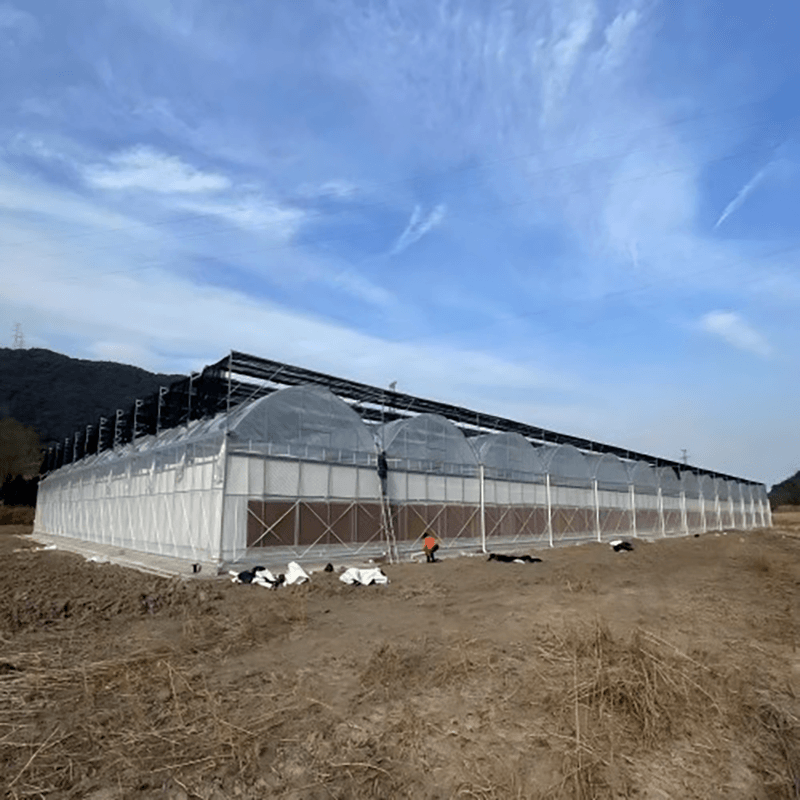

Multi-span film greenhouse is an economic and high-efficiency agricultural facility engineered for large-scale commercial planting operations. As a leading commercial plastic greenhouse solution, it maximizes land utilization while delivering a precisely controlled growing environment for diverse crops. Built with hot galvanized steel frames and covered with premium PO or PE films, this agricultural film greenhouse offers exceptional thermal insulation and long-term durability at a competitive initial investment cost.
The innovative film covering forms a thick air buffer layer that effectively traps heat and blocks cold air intrusion, drastically cutting energy consumption for heating. Additionally, the film is treated with advanced anti-condensation and anti-ultraviolet coatings to shield crops from harmful UV rays and prevent water droplets from damaging delicate plant foliage. Our large plastic greenhouse supports full customization of span, height, and auxiliary systems to perfectly match specific regional climate conditions and crop cultivation requirements.
The double-layer film configuration of our PO film greenhouse creates an insulating air gap that reduces heat loss by up to 40% compared to single-layer structures. This translates to significant savings in heating expenses during cold seasons, making it ideal for year-round production in temperate and cold climate zones.

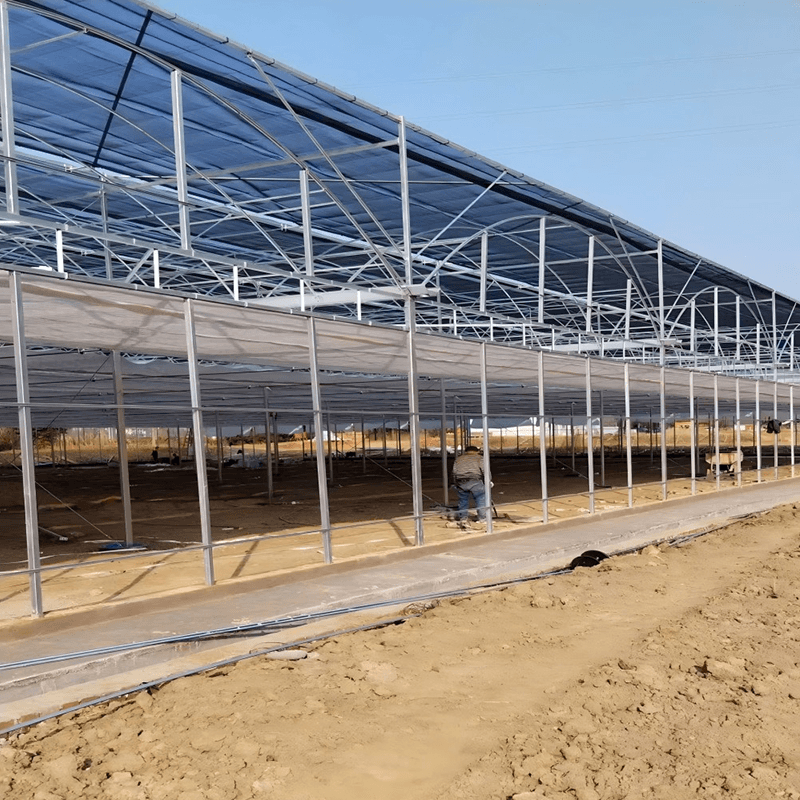

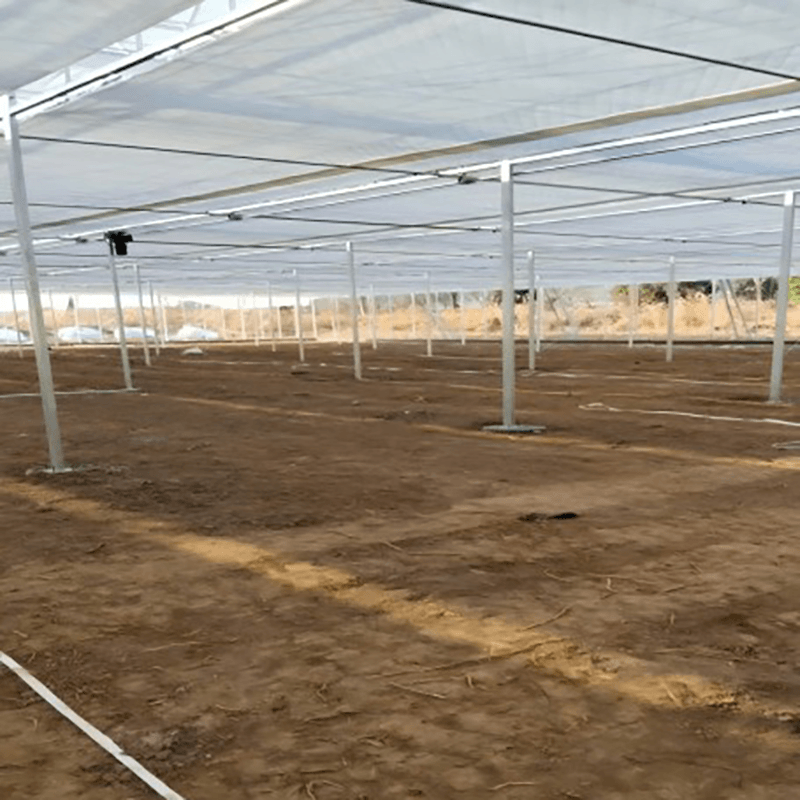

All main frames are fabricated from hot galvanized steel pipes with a 275g/m² zinc coating, ensuring outstanding rust resistance and a service life exceeding 15 years. Welded joints undergo post-fabrication galvanization, and all connections use bolts rather than welding, eliminating potential corrosion hotspots and simplifying routine maintenance.

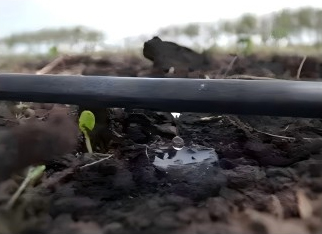

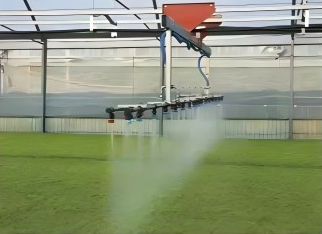

Our PE film greenhouse can be outfitted with a comprehensive suite of auxiliary systems, including external shading (75% shading rate), internal shading (>50% shading rate), exhaust fan and cooling pad cooling system, hot water or forced air heating system, and automated drip irrigation system. These systems enable precise regulation of temperature, humidity, light intensity, and water delivery to optimize crop growth and yield.
Brand Name | Jinghao |
Size | Large |
Types Of | Multi-Span Agricultural Greenhouses, Plastic Shed |
Surface Material | Film |
Place Of Origin | China |
Main Frame | Hot Galvanized Steel Pipe |
Covering | PO/PE film |
Span | 8m/6m/9m or customized |
Roofing Shape | Arched Roof |
Location | Indoor & Outdoor |
Systems | Ventilation/irrigation/cooling |
Type Of Greenhouse | Multi-span film Greenhouse |
Greenhouse Features | Stable Structure |
Film Thickness | 0.15mm/0.2mm or customized |
Zinc | 275g |
Span | 8m/6m/9m or customized |
Bay Width | 4m |
Gutter Height | 4m/6m/8m/10m |
Maximum Rainfall | 140mm/h |
Plant Hanging Load | 1 5kg/m2 |
Roof Height | 0.88m |
Top Height | 7m |
Power Supply Parameter | 220v/380v,50Hz |
Main Frame | Hot Galvanized Steel Pipe |
Covering | PO/PE film |
Wind Load | 0.4KN/Sqm |
Snow Load | 0.4KN/Sqm |

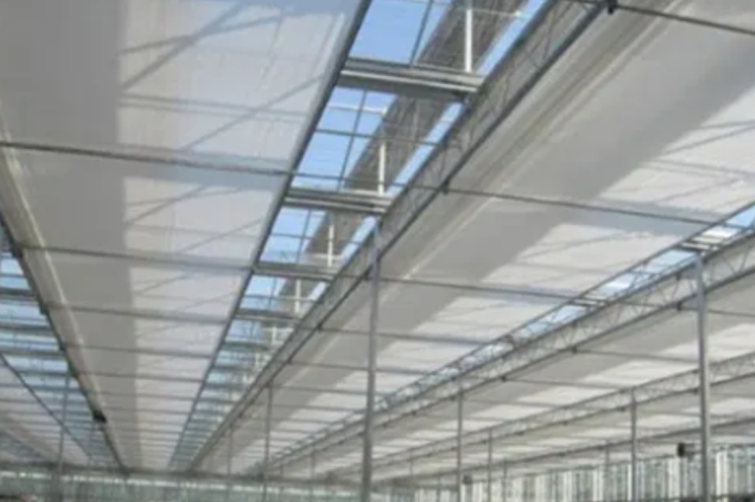

Inside Shadow System | Setting internal shading is an effective way to save energy,shade,temperature and humidity. |

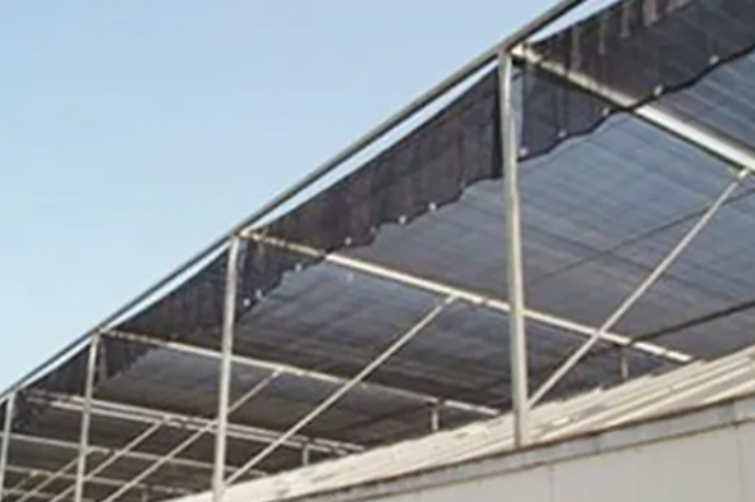

Outside Shadow System | In summer,the solar radiation heat load is too high,when the external shading system is used,the indoor temperature can be controlled to be only 1'c higher than that of the outdoor room in a well ventilated greenhouse due to the blocking of most of the solar radiation into the greenhouse |

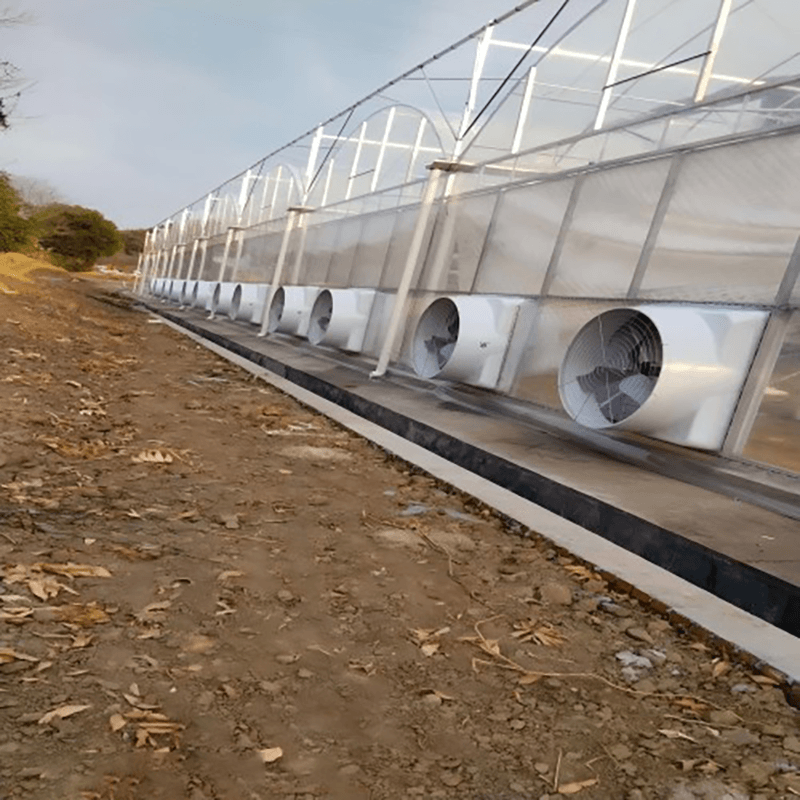

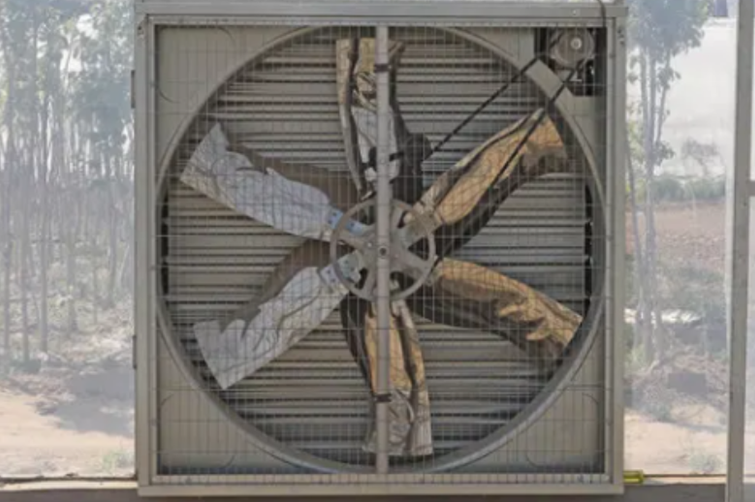

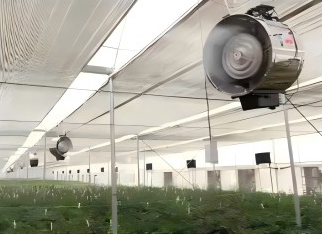

Exhaust Fan | Reasonable design,low noise,big or volume,strong wind,low operation cost:Air downstream synthetic type PVC blinds or |

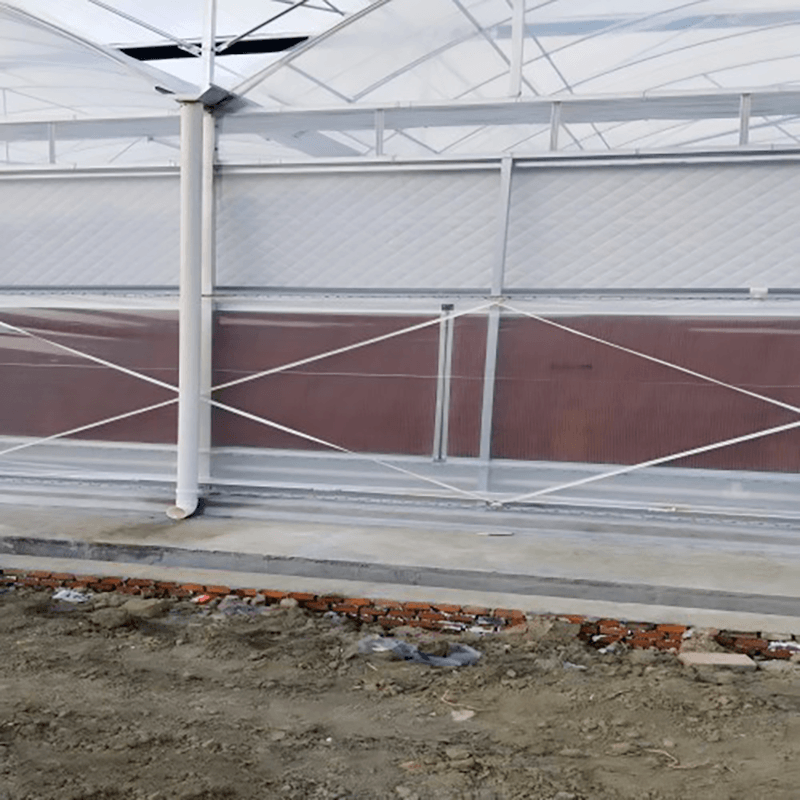

Cooling Pad | Corrugated paper uses space cross-inking technology, which make it with high water absorption, high water resistant, mildew resistance, corrosion resistance, long service life |

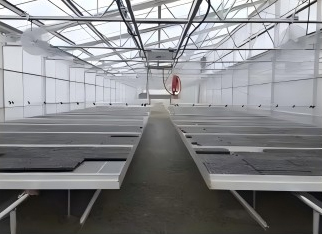

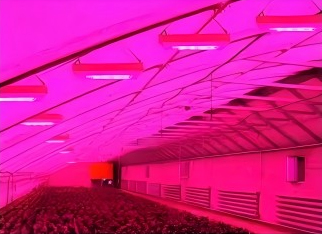

Greenhouse Systems | Heating system(hot fan and water heating cooling system(cooling fan and cooling pad), internal and external shading system, insulation system, seedbed system, light supplement system,irrigation system, etc |
We have experienced engineering department which can design according to your special requirements. | |
This economic agricultural greenhouse is perfectly suited for commercial growers and agricultural enterprises engaged in large-scale vegetable production including tomatoes, cucumbers, bell peppers and leafy greens. It also excels in commercial cut flower cultivation for roses, chrysanthemums and carnations, as well as commercial seedling propagation and nursery operations. The structure supports hydroponic and soilless culture systems, and enables seasonal extension of crop production in temperate regions. It is particularly advantageous for operations where initial capital investment is a primary consideration without compromising on production efficiency.
Conduct routine structural inspection every 3 months to check the steel frame for signs of rust, damage or deformation. Tighten all loose bolts and connections to maintain structural integrity.
Inspect the film covering monthly for tears, punctures or loose fastenings. Repair small damages immediately with specialized film repair tape to prevent further tearing and water ingress.
Clean exhaust fans and cooling pads every 2 months to ensure optimal airflow and cooling performance. Lubricate moving parts of shading systems and ventilation shutters regularly to keep them operating smoothly.
Complete seasonal preparation before extreme weather arrives. Before winter, reinforce the structure to withstand heavy snow loads and inspect all heating systems thoroughly. Before summer, test and service all cooling and shading systems to prepare for high temperatures.
High-quality anti-UV PO film typically lasts 3-5 years, while standard PE film lasts 2-3 years. We offer premium UV-stabilized films that provide extended service life and superior performance for long-term commercial operations.
Absolutely. Our experienced engineering team provides full customization of span, length, height and all auxiliary systems to perfectly match your site conditions and operational needs. We can tailor every aspect of the greenhouse to your unique cultivation requirements.
Installation time varies based on project size and complexity. A standard 1000m² multi-span film greenhouse can be completed within 2-3 weeks by our professional installation team, ensuring minimal disruption to your planting schedule.
