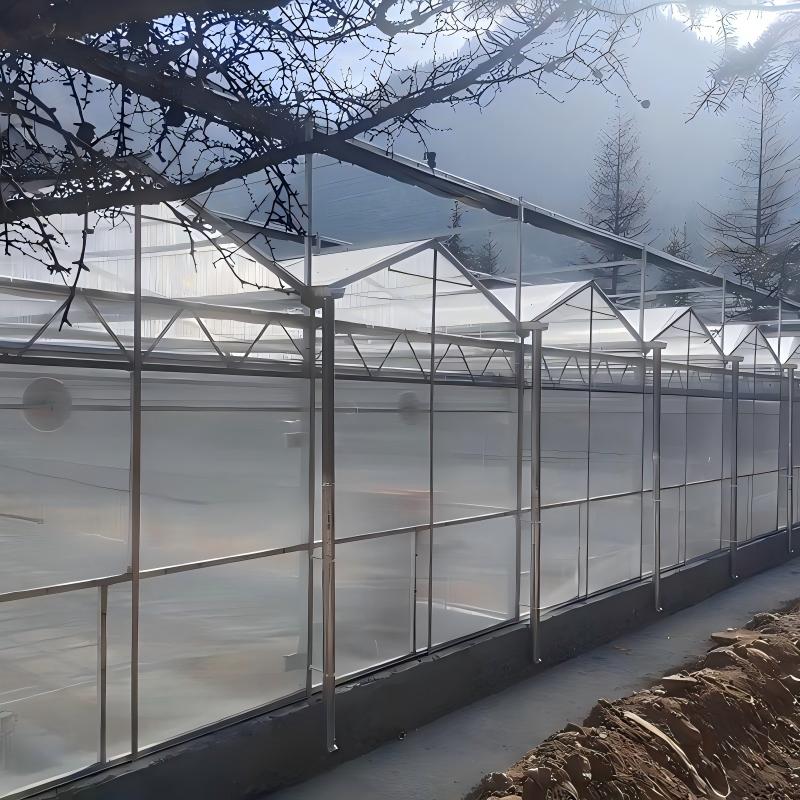

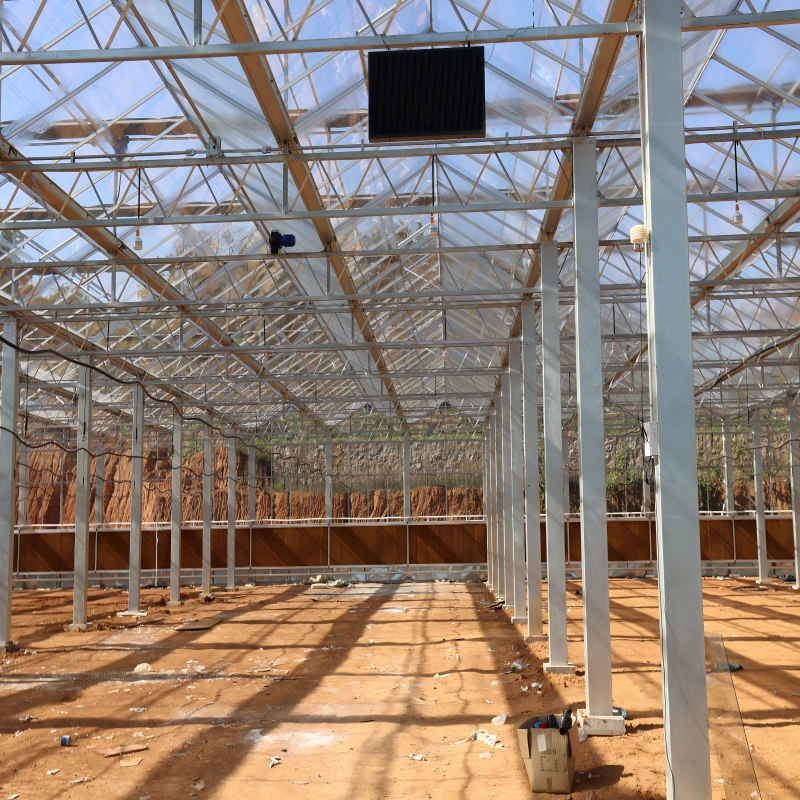

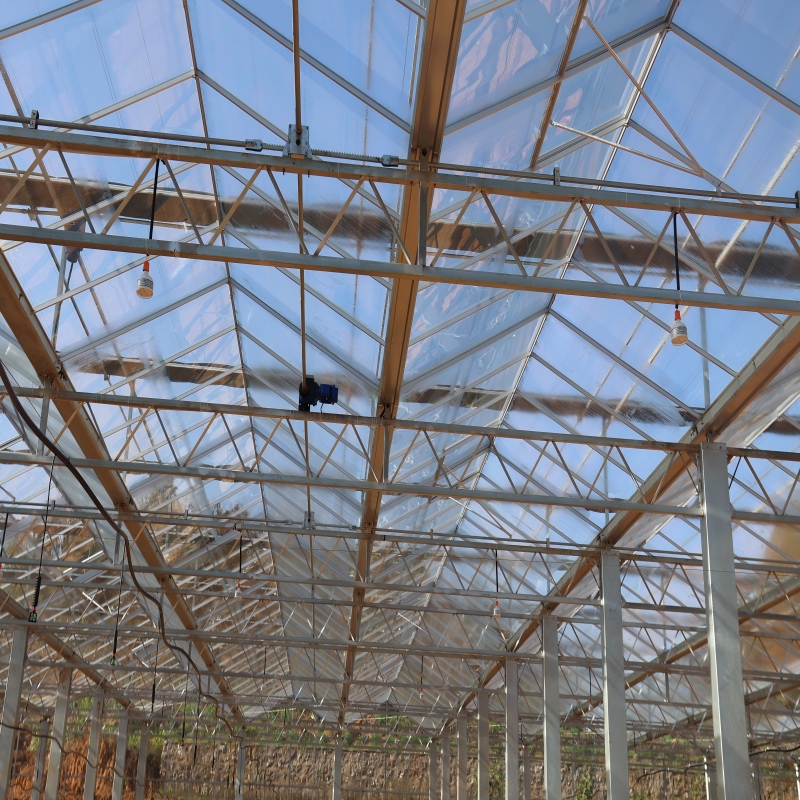

This multi-span PC greenhouse is a cost-effective, high-insulation commercial facility, engineered for large-scale year-round cultivation of succulents, seedlings, and ornamental plants. Constructed with a reinforced hot-dip galvanized steel arch frame and UV-coated hollow polycarbonate (PC) sheet, it delivers exceptional thermal retention, uniform light distribution, and intelligent climate control, creating a stable, low-maintenance growing environment ideal for various climate zones, especially cold and high-altitude regions.
| Quantity: | |
|---|---|
As a premier manufacturer and global supplier of advanced agricultural facilities, we engineer the Multi-Span PC Greenhouse to redefine commercial cultivation. This robust structure combines hot-dip galvanized steel with premium hollow polycarbonate sheets, delivering an exceptionally stable and climate-controlled environment for large-scale operations. Designed to maximize yield and minimize operational overhead, it stands as the ultimate solution for modern growers seeking long-term profitability and ecological control.
Engineered for year-round, high-yield commercial cultivation.
Superior thermal retention for significantly reduced energy expenditure.
Modular architecture allowing limitless physical expansion.
Built to withstand severe wind, snow accumulations, and hail impacts.
✅ Premium Hollow PC Sheet Covering: 8mm/10mm/12mm UV-coated polycarbonate sheet with 85%+ light transmittance, providing superior thermal insulation and impact resistance compared to glass
✅ Reinforced Arch Steel Structure: Hot-dip galvanized Q235/Q345 steel skeleton, wind load resistance ≥ 0.5kN/m², snow load resistance ≥ 0.45kN/m², 15+ year service life
✅ Intelligent Climate & Shading Systems: Integrated internal shading, thermal insulation screens, and automated ventilation systems, with remote monitoring for precise environment control
✅ Year-Round Off-Season Production: Enhanced thermal retention reduces heating costs by 30%+, enabling continuous cultivation regardless of external climate
✅ Hail & Impact Resistant: PC sheet has 200x the impact strength of glass, withstanding moderate hail and extreme weather
✅ Lightweight & Cost-Effective: Lower overall investment and installation cost than glass greenhouses, with long-term operational reliability
Achieving consistent agricultural output requires a facility that actively works to protect and nurture your crops. This structure is engineered to eliminate the vulnerabilities associated with traditional farming, providing a highly controlled ecosystem that accelerates growth cycles and protects your bottom line.
Uncompromising Weather Resilience: The integration of reinforced steel and impact-resistant polycarbonate creates a fortress against extreme weather, preventing catastrophic crop loss during sudden hailstorms or heavy snowfalls.
Drastic Energy Reductions: The superior insulation properties of the hollow panels trap ambient heat effectively, slashing winter heating bills and improving overall operational margins.
Optimized Light Diffusion: By scattering incoming sunlight, the panels prevent harsh shadows and leaf burn, ensuring every plant receives the exact spectrum needed for vigorous, uniform growth.
Condensation Management: Advanced anti-drip coatings cause internal moisture to slide down the walls rather than dripping onto plants, significantly reducing the risk of fungal infections and botrytis.
Low-Maintenance Longevity: The combination of hot-dip galvanization and UV-stabilized polymers means the structure resists rust, yellowing, and brittleness, requiring minimal upkeep over its decades-long lifespan.
Item | Standard Specification |
Frame Structure | Multi-Span Arch Hot-dip Galvanized Steel PC Greenhouse |
Covering Material | 8mm/10mm/12mm Hollow Polycarbonate (PC) Sheet (UV-resistant, anti-drip) |
Frame Material | Q235/Q345 Hot-dip Galvanized Steel |
Span | 8m / 9.6m / 12m / 16m (fully customizable) |
Bay Spacing | 4m / 5m / 8m (fully customizable) |
Column Height | 3m / 4m / 5m (fully customizable) |
Ridge Height | 4.5m / 6m / 7.5m (fully customizable) |
Length | Unlimited, modular extension by bays |
Wind Load Resistance | ≥ 0.5kN/m² |
Snow Load Resistance | ≥ 0.45kN/m² |
Light Transmittance | 85%+ |
HS Code | 9406900090 |
Service Life (Frame) | 15+ Years |
Service Life (PC Sheet) | 10+ Years |

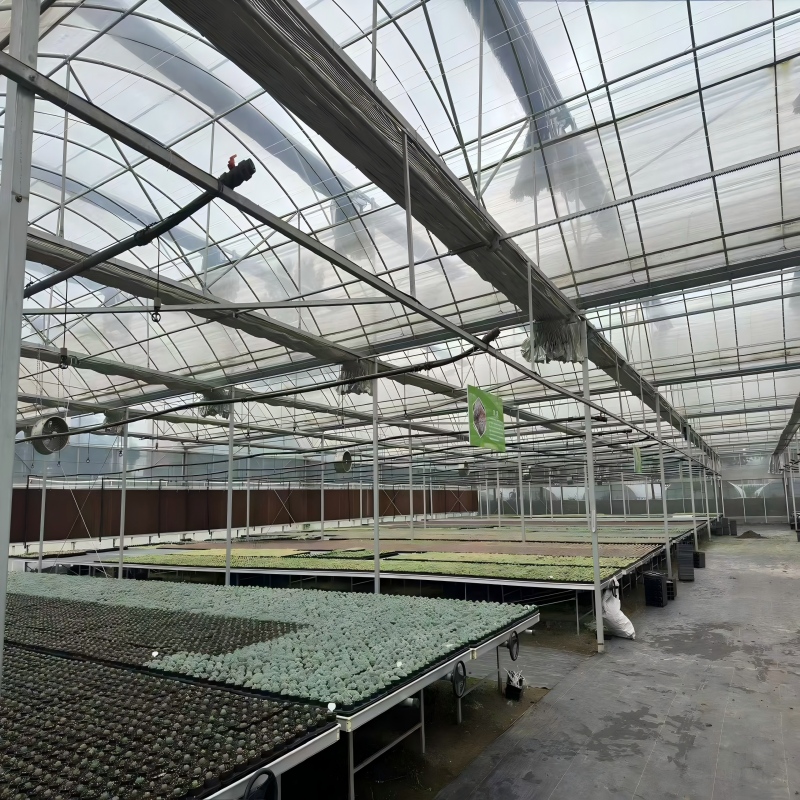

Commercial Succulent & Cactus Cultivation Bases: Greenhouse-grown succulents and ornamental plants
Cold & High-Altitude Region Year-Round Greenhouses: Continuous cultivation in harsh winter conditions
Commercial Seedling & Nursery Bases: Vegetable, flower, and ornamental seedling propagation
Modern Agricultural Parks & Horticultural Demonstration Bases: High-insulation greenhouse technology display
Off-Season High-Value Crop Production for Domestic & Export Markets
Inspect steel frame connections, PC sheet fastening, shading/ventilation systems, and electrical components before daily use.
Set optimal temperature, humidity, and ventilation parameters via the intelligent control cabinet, enable automatic shading and heating systems.
Program the automated drip/sprinkler irrigation system to deliver water and nutrients according to crop growth stages.
Regularly clean PC sheet surfaces to maintain light transmittance, inspect ventilation fans and heating units for blockages.
Adjust shading/insulation systems and heating/cooling equipment to adapt to seasonal climate changes
Conduct monthly maintenance on motors, transmission parts, and electrical systems, perform annual structural inspection.
Selecting the right manufacturing partner is just as critical as choosing the right facility. We do not merely supply structures; we deliver comprehensive agricultural solutions engineered to elevate your production capabilities and secure your return on investment. Our approach is rooted in precision engineering, strict quality control, and a deep understanding of commercial cultivation challenges.
Direct-from-Source Economics: By controlling the entire manufacturing process, we eliminate intermediary markups, providing you with premium infrastructure at highly competitive price points.
Engineering Pedigree: Our dedicated team of structural engineers and agronomists collaborate to ensure every facility is perfectly calibrated for your specific geographic location and crop profile.
Rigorous Quality Assurance: Every steel beam and polycarbonate sheet undergoes stringent stress testing and visual inspection before leaving our facility, guaranteeing flawless performance upon installation.
Global Logistics Mastery: We navigate complex international shipping routes with ease, ensuring your customized structural components arrive safely, on schedule, and ready for immediate assembly.
Lifecycle Partnership: Our commitment extends far beyond delivery. We provide ongoing technical consultation and rapid-response support to ensure your facility operates at peak efficiency year after year.
A: The arch design has better natural ventilation and lower cost, ideal for large-scale commercial cultivation, while Venlo type is more suitable for high-precision floriculture.
Q2: Is PC sheet resistant to UV aging?
A: Yes, our PC sheet is coated with a UV protection layer, ensuring a 10+ year service life without yellowing or brittleness.
Q3: Can this greenhouse be used for succulent cultivation?
A: Yes, it features stable temperature, uniform light, and good ventilation, ideal for commercial succulent production.
Q4: Can the size and configuration be fully customized?
A: 100% customizable, all span, height, length, and system configurations can be tailored to your crop type, local climate, and production scale.
Q5: What is the HS code for export?
A: The general HS code is 9406900090, final confirmation is subject to your local customs broker.
