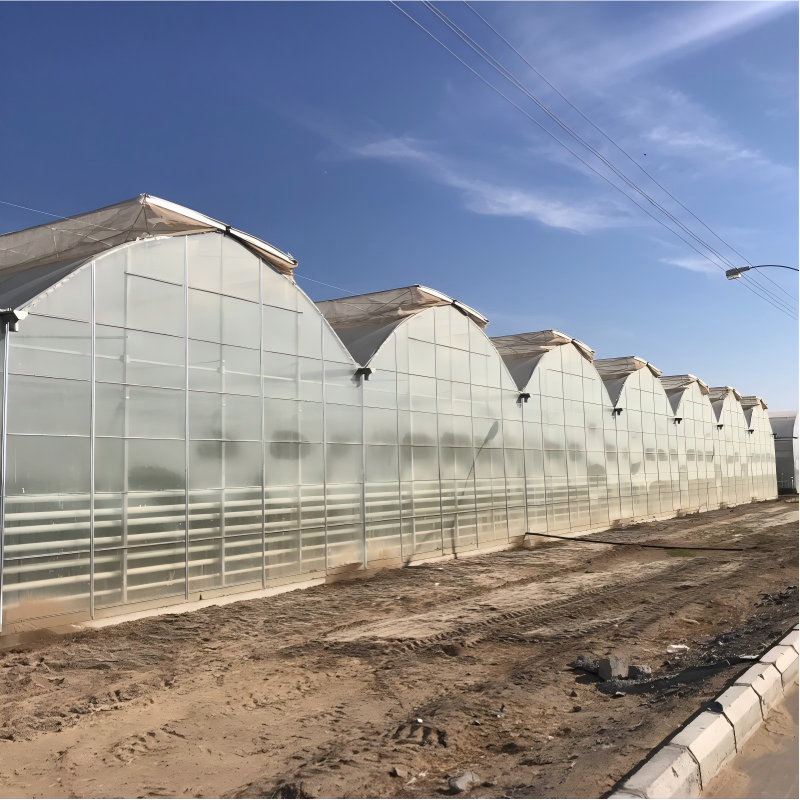

This Gothic film greenhouse is a premium, multi-span commercial facility, engineered specifically for large-scale year-round cultivation of high-value cut flowers, ornamentals, and horticultural crops. Constructed with a reinforced hot-dip galvanized steel Gothic arch frame and high-performance PO/PE plastic film, it delivers exceptional natural light distribution, superior snow-shedding performance, and intelligent climate control, creating a stable, aesthetically pleasing growing environment ideal for commercial floriculture and modern agricultural operations.
| Quantity: | |
|---|---|
✅ Premium Gothic Arch Structure: The unique Gothic (pointed arch) design enhances snow-shedding efficiency, reducing snow load stress and ensuring safe operation in snowy regions
✅ High-Performance Film Covering: 150/200μm UV-resistant, anti-drip PO/PE film with 90%+ light transmittance, ensuring uniform natural light penetration for consistent, high-quality flower growth
✅ Reinforced Galvanized Steel Frame: Hot-dip galvanized Q235/Q345 steel skeleton, wind load resistance ≥ 0.55kN/m², snow load resistance ≥ 0.45kN/m², 15+ year service life

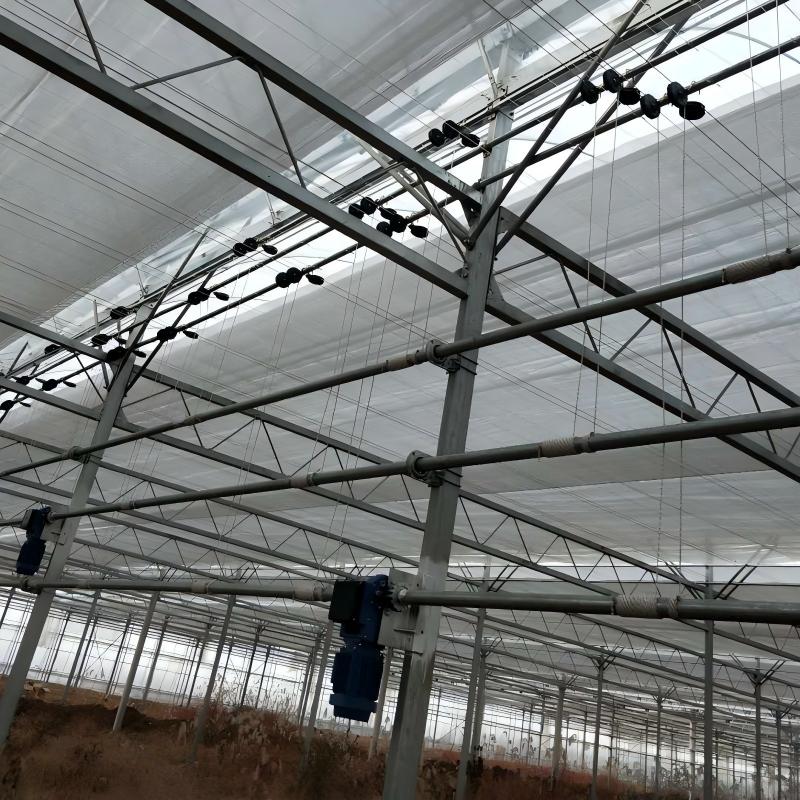

✅ Intelligent Climate & Shading Systems: Integrated internal shading, thermal insulation screens, and automated ventilation systems, with remote monitoring for precise environment control
✅ Year-Round Off-Season Production: Break seasonal limits, enabling continuous cultivation of gerberas, roses, and other high-value flowers regardless of external climate
✅ Aesthetic & Commercial-Grade Appearance: Sleek, professional Gothic design ideal for brand display, horticultural exhibitions, and agri-tourism
Item | Standard Specification |
Frame Structure Model | Gothic Type Multi-span Hot-dip Galvanized Steel Film Greenhouse |
Covering Material | 150/200μm UV-resistant PO/PE Plastic Film (anti-drip, anti-fog) |
Frame Material | Q235/Q345 Hot-dip Galvanized Steel |
Standard Span | 9.6m / 10.8m / 12m (fully customizable) |
Bay Spacing | 4m / 8m (fully customizable) |
Column Height | 3.5m / 4.5m / 6m (fully customizable) |
Ridge Height | 5m / 6.5m / 8m (fully customizable) |
Length | Unlimited, modular extension by bays |
Wind Load Resistance | ≥ 0.55kN/m² |
Snow Load Resistance | ≥ 0.45kN/m² |
Light Transmittance | 90%+ |
HS Code | 9406900090 |
Service Life (Frame) | 15+ Years |
Service Life (Film) | 3-5 Years |

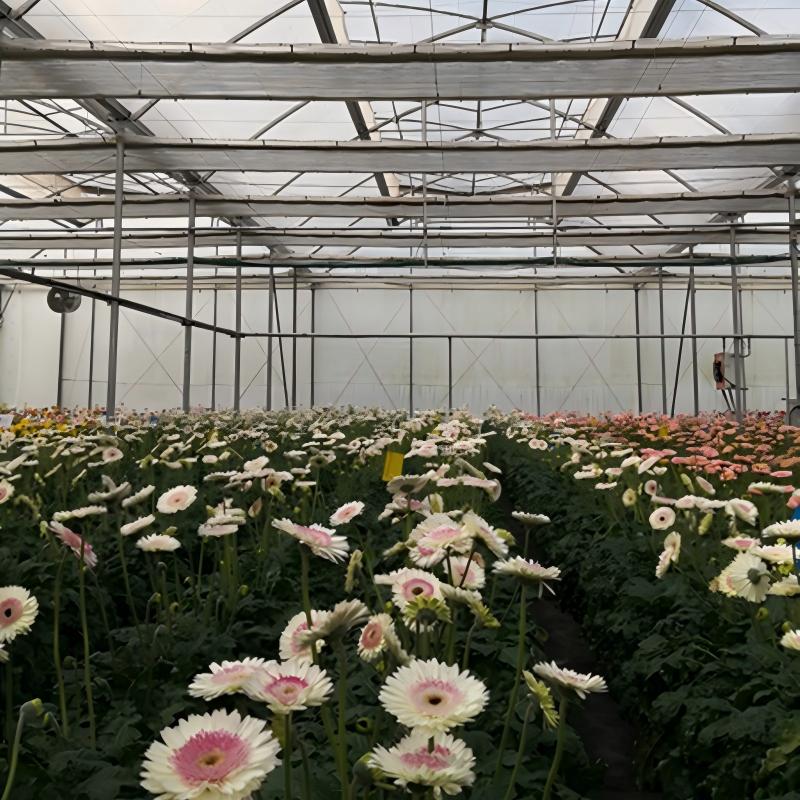

Commercial Cut Flower Production Bases: Gerberas, roses, anthuriums, and other high-value cut flowers
Potted Ornamental & Foliage Plant Production: Greenhouse-grown potted plants and landscape nursery stock
Modern Agricultural Parks & Horticultural Demonstration Bases: High-standard greenhouse technology display and agri-tourism
Off-Season High-Value Flower Production for Domestic & Export Markets
Flower Seedling Propagation & Nursery Centers
Inspect steel frame connections, film fastening, shading/ventilation systems, and electrical components before daily operation.
Set precise temperature, humidity, and ventilation parameters via the intelligent control cabinet, enabling automatic shading and ventilation.
Program the automated drip/sprinkler irrigation system to deliver water and nutrients, avoiding leaf wetting to prevent disease.
Regularly clean film surfaces to maintain light transmittance, inspect ventilation fans and irrigation nozzles for blockages.
Adjust shading/insulation systems and heating/cooling equipment to adapt to seasonal climate changes.
Conduct monthly maintenance on motors, transmission parts, and electrical systems, perform annual structural inspection.
A: The pointed arch ensures excellent snow-shedding, uniform light distribution, and a spacious interior, creating a stable environment ideal for high-value cut flowers.
Q2: How does the Gothic frame perform in heavy snow?
A: The reinforced steel frame and smooth arch design effectively shed snow, withstanding heavy snow loads and ensuring safe operation in snowy regions.
Q3: Is this greenhouse suitable for commercial gerbera production?
A: Yes, it features uniform light, stable temperature, and precise climate control, perfect for large-scale gerbera and cut flower cultivation.
Q4: Can the size and configuration be fully customized?
A: 100% customizable, all span, height, length, and system configurations can be tailored to your crop type, local climate, and production scale.
Q5: What is the HS code for export?
A: The general HS code is 9406900090, final confirmation is subject to your local customs broker.
